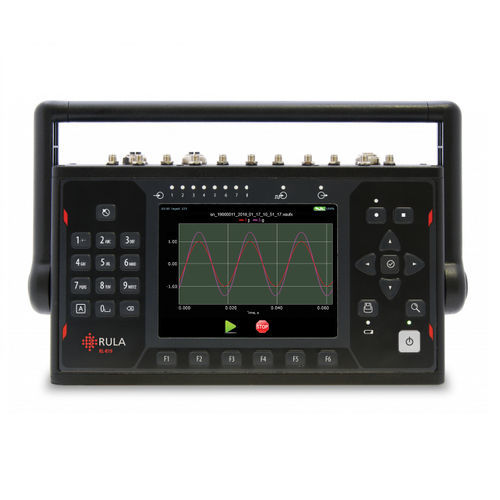

Spectrum analyzer RL-R19

signalmonitoringportable

Portable spectrum analyser DAQ system and spectrum analyzer is intended for measuring, registering and analyzing vibration data and other physical processes. RL-R19 enables the user to: • acquire and transfer data from vibration sensors; • examine the vibration condition of machines, mechanisms, mechanical constructions, bearings, gearings etc. detect various; • defects of machines, mechanisms, mechanical constructions, bearings, gearings etc.; • balance rotors of machines and mechanisms. The principle of building up the software of RL-R19 devices enables forming a set of functional options intended to solve specific problems. The only obligatory option is “Basic Software”, other options may be combined in any configuration. The following options are available: • Basic software (including making and viewing recordings). • Part-octave analysis. • Statistic analysis. • Balancing. • Signal generator. • Repeater. • Automatic measurements. • Filtration. • Shock analysis. • Synchronization. Specifications • Number of measuring channels : 4÷8 • Tacho-channel : 1 • Range of measure signals : ±20 V • Mode of measuring channels : IEPE, linear, single-ended • Logical inputs and outputs : 4 inputs and 4 outputs • Screen resolution : 640×480 pixels • Screen diagonal : 5.7 inches • Battery capacity : ≥ 8000 mAh • Protection : IP65 Input • Input type / Sensor type : IEPE, linear • FRF non-linearity (1kHz) in the range of 1 ÷ 40000 Hz : ≤ 2 dB • FRF non-linearity (1kHz) in the range of 1 ÷ 60000 Hz : ≤ 5 dB
