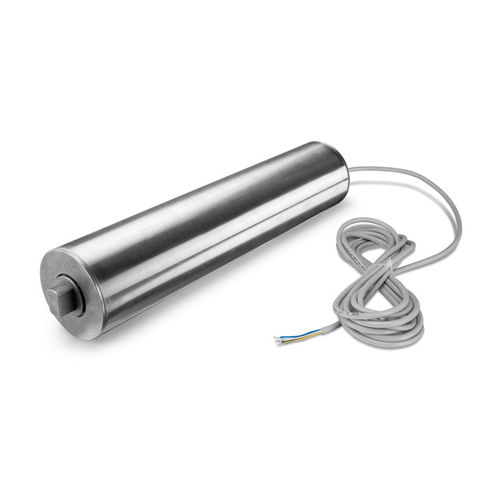

Single-phase/three-phase drum motor 113LP
for light-duty applicationsfor conveyors

single-phase/three-phase drum motor
single-phase/three-phase drum motor
Add to favorites
Compare this product


Characteristics

Motor type
single-phase/three-phase
Options
for light-duty applications, for conveyors
Diameter

113.6 mm (4.5 in)

Rated torque

1,500 N, 2,000 N

Velocity of the shell

Min.: 0.03 m/s (0.1 ft/s)

Max.: 1.05 m/s (3.44 ft/s)

Width

Min.: 300 mm (11.8 in)

Max.: 1,200 mm (47.2 in)

Description

Drive for light loads and with techno-polymer or combined techno-polymer/steel gearbox This motorized pulley is a perfect drive station for small and medium-duty conveyor systems. Characteristics 3-phase or 1-phase AC induction motor Single-rated voltage Integral motor protection Techno-polymer or combined techno-polymer/steel gearbox Low noise Lightweight Maintenance-free Lifetime lubricated Reversible Applications Light-duty conveyors Packaging equipment Bottle recycling X-ray security scanning systems Pharmaceutical handling Food processing Supermarket checkout conveyor Dry, wet and wash-down applications

Catalogs
