slip-on conveyor roller / steel / high-density polyethylene (HDPE)
SUPREME

{{requestButtons}}

Characteristics

  • Drive mechanism:

    slip-on

  • Material:

    steel, high-density polyethylene (HDPE)

  • Diameter:

    Min.: 127 mm

    Max.: 159 mm

Description

The SUPREME roller boasts a wide range of superior advantages, features & benefits:

Steel tube ensures adequate mechanical strength for heavy duty loads
Ultra thick abrasion and corrosion resistant 12mm thick HDPE sleeve
HDPE contains carbon black increasing ultra violet resistance
Steel and HDPE tube combination provides significantly reduced weight
The bearing housing effectively locks the HDPE tube in position preventing movement along the steel tube
Minimum “C dimension” decreases load induced shaft deflection

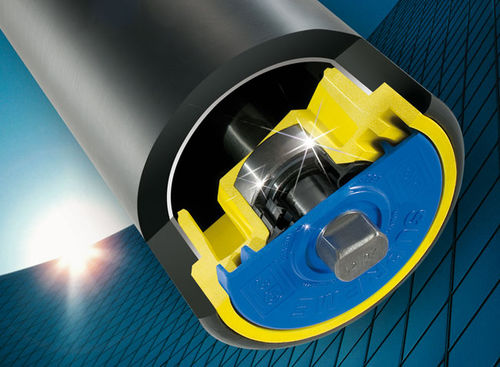

Unique large diameter stoneguard with integral labyrinth design minimises possibility of being jammed by spilt material, and provides additional protection from water and dust
Multi part labyrinth seal protects the bearing from ingress of contaminants
Ultra low running resistance and break away mass reduces power consumption for start up and continuous operation
Machined finish ensures LOW run-out, minimizing vibration and noise emission
Castellated HDPE tube is a tight interference fit on the steel tube
