Thermal inkjet marking and coding device i-TIJ

for cardboard boxesfor continuous production linesfor labels

Overview
The RYNAN i-TIJ series is a compact, modular thermal inkjet (TIJ) printing platform engineered for high-resolution, variable-data printing on industrial production lines. Designed for standalone operation or seamless integration, the system is managed via H-MCS for centralised factory control and supports multiple RYNAN printheads to address diverse packaging and substrate requirements.

Key features

• Modular TIJ controller compatible with RYNAN i-PRO, i-MAX, i-REACH and i-REACH XL printheads
• High-resolution printing up to 600 DPI for small text and fine variable data
• High-speed models with print rates up to 76 m/min (model and DPI dependent)
• Support for TIJ 2.5 inks (aqueous, solvent, UV) and One-Inch / Brady ink options
• Print heights up to 1 inch, suitable for box coding and secondary packaging

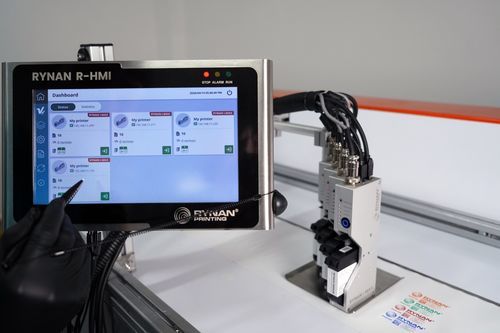

• 10-inch HMI LCD with web-browser remote control; 7-inch display available by configuration
• Colour WYSIWYG graphical interface for fast job setup and preview
• Optimised for difficult substrates using high-adhesion and penetrating inks (i-REACH and i-REACH XL)
• Engineered for production environments with centralised control via H-MCS
• 24 months limited warranty

Applications

• Primary packaging: high-resolution coding of small text, variable data and barcodes on primary packs
• Secondary packaging and carton box coding: batch numbers, barcodes and expiry dates up to 1-inch height
• Outer case and logistics marking for traceability and handling
• Printing on uneven or curved surfaces including PVC and coated substrates (with appropriate printhead and ink)
• Industries: Food & Beverage, Pharmaceuticals, Consumer Goods, Industrial components and other sectors requiring variable data coding

Technical specifications

• Series / model family: RYNAN i-TIJ (supports i-PRO, i-MAX, i-REACH, i-REACH XL printheads)
• Print technology: Thermal Inkjet (TIJ)
• Print quality: up to 600 DPI (model dependent)
• Example print speeds (model dependent): up to 76 m/min at 600 DPI; other model/DPI combinations available
• Maximum recommended print height: up to 1 inch (suitable for box coding and secondary packaging)
• Supported inks: TIJ 2.5 (aqueous / solvent / UV); One-Inch inks (aqueous / solvent); Brady inks (aqueous / solvent)
• Control & interface: 10-inch HMI LCD; remote control via web browser; colour WYSIWYG interface
• Integration: standalone use or integration into production lines; centralised management via H-MCS
• Applications: primary packaging, secondary packaging, cartons, curved/uneven surfaces
• Warranty: 24 months limited warranty
