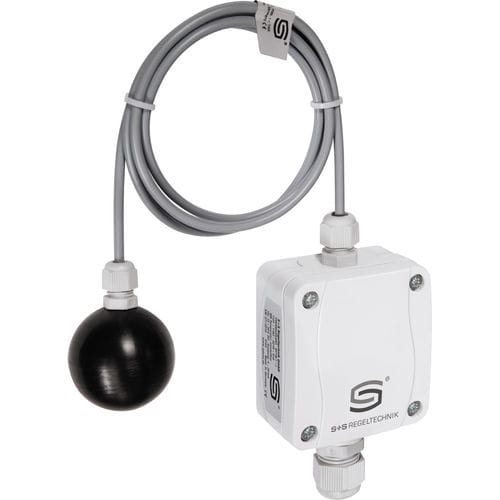

Wet-bulb globe temperature transducer RPTM2-U

Pt1000pendulum0-10 V

Pendulum room temperature measuring transducer (globe thermometer) THERMASGARD® RPTM2 Calibratable THERMASGARD® RPTM 2 room pendulum temperature measuring transducer (with globe) THERMASGARD® RPTM 2 with eight switchable measuring ranges, continuous output in an impact resistant plastic housing with quick-locking screws, optionally with/without display, cable sensor with a black plastic globe. The pendulum sensor has been specially designed to detect the temperature in larger rooms or halls. The resistance thermometre (globe thermometre) achieves a very good, representative measurement result due to its positioning in the room. The dark radiation sensor determines the effective radiation heat at the measured location. This is relevant for calculating the thermal comfort (operative room temperature) taking into account the co-action of thermal radiation and thermal convection. The globe/air temperature ratio is approx. 70%/30%. The sensor is factory-calibrated and can be fine-tuned to ambient conditions by an expert.
