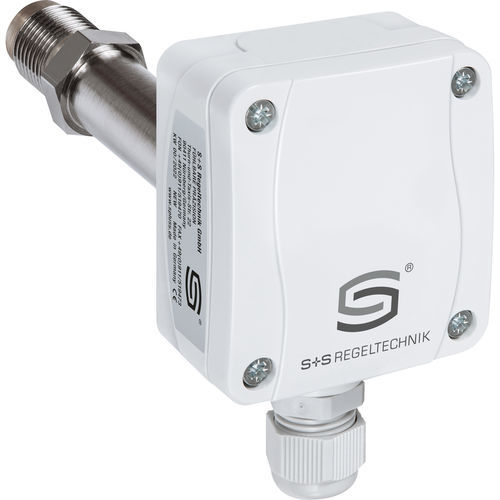

Screw-in humidity and temperature sensor ESFTF-U
relative4-20 mA0-10 V

Screw-in humidity and temperature sensor - ESFTF-U - S+S Regeltechnik - relative / 4-20 mA / 0-10 V
Screw-in humidity and temperature sensor - ESFTF-U - S+S Regeltechnik - relative / 4-20 mA / 0-10 V
Screw-in humidity and temperature sensor - ESFTF-U - S+S Regeltechnik - relative / 4-20 mA / 0-10 V - image - 2
Screw-in humidity and temperature sensor - ESFTF-U - S+S Regeltechnik - relative / 4-20 mA / 0-10 V - image - 3
Screw-in humidity and temperature sensor - ESFTF-U - S+S Regeltechnik - relative / 4-20 mA / 0-10 V - image - 4
Add to favorites
Compare this product

Characteristics

Type
relative
Mounting
screw-in
Output
4-20 mA, 0-10 V, 4-wire, 3-wire
Supply voltage
24VDC, 15VDC, 32VDC, 36VDC
Protection level
IP65
Other characteristics
high-precision
Applications
air, for industrial applications, for pressurized systems
Measuring range (%)

Max.: 100 %

Min.: 0 %

Measuring range (temperature)

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Working temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Screw-in humidity and temperature sensor for pressure systems HYGRASGARD® ESFTF The humidity transmitters of the HYGRASGARD® ESFF / ESFTF series are used for measuring relative humidity and air temperature pressurised systems, and convert these measured values to standard signals of 4...20 mA or 0-10 V. Process connection is G ½" straight external pipe thread, with a terminal box housing made of impact resistant plastic, and housing cover with quick-locking screws. The screw-in humidity measuring transducers have been designed for operation in pollutant-free, non-precipitating air. They are mounted vertically with the sensor pointing down.
