Thermocouple wire N0435

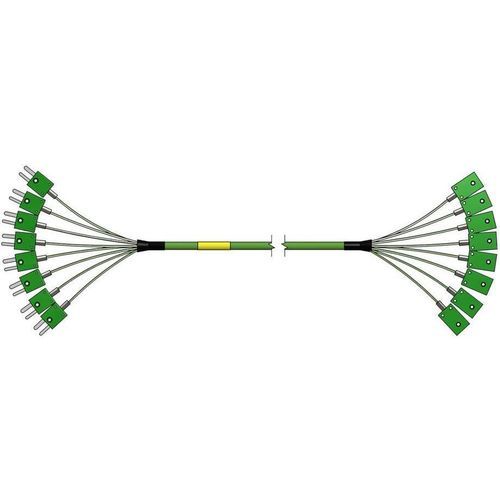

8-Channel Thermocouple Extension Cable with FEP Insulation and Modular Connectors Expand your multi-channel temperature measurement capabilities with our 8-channel thermocouple extension cable, designed for precise signal transmission in test benches, automotive development, and industrial processes. Featuring FEP insulation and copper shielding, this cable offers reliable performance at temperatures up to +180°C. This 8-channel configuration provides a compact, space-saving design ideal for installations with limited room, while still delivering secure multi-channel connections. Equipped with modular connectors such as miniature plugs and couplings, it allows flexible integration into a wide range of measurement systems. Standard and custom lengths are available to suit your application needs. - easy handling and quick installation - mechanically robust and durable - space-saving design - temperature resistant up to +180 °C - variable cable lengths Cable Data - Connection cable: thermocouple cable 8 x 2 x 0.22 mm² - Insulation: FEP - Screen: tinned copper braiding - Outer sheath: FEP - Diameter: 6.9 mm - Temperature range: -25°C to +180°C Connector - Side 1: miniature plug (screwable) - Side 2: miniature socket (screwable) Configuration Example - item no.: S0435-4040-00100, Type: type K, Cable length: 1000 mm - item no.: S0435-4040-00200, Type: type K, Cable length: 2000 mm - item no.: S0435-4040-00300, Type: type K, Cable length: 3000 mm - item no.: S0435-4040-00500, Type: type K, Cable length: 5000 mm - item no.: S0435-4040-01000, Type: type K, Cable length: 10000 mm Other lengths available on request. - Application: Multi-channel temperature measurement, test benches, automotive development, industrial processes - Insulation: FEP - Shielding: Tinned copper braiding - Outer sheath: FEP - Diameter: 6.9 mm - Temperature range: -25°C to +180°C - Connectors: Miniature plug (screwable) / Miniature socket (screwable) - Available lengths: 1000 mm, 2000 mm, 3000 mm, 5000 mm, 10000 mm (custom lengths on request)
