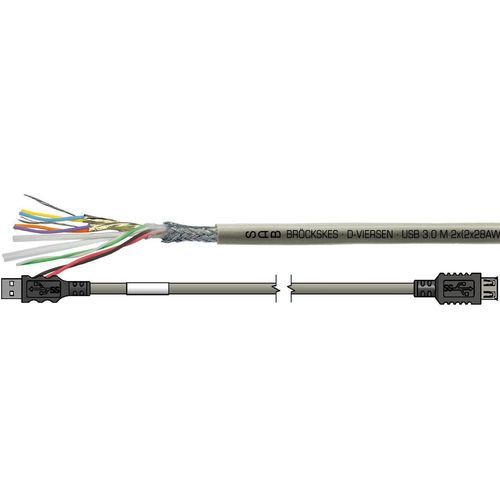

Electrical data cable

powerUSB 3.0shielded

Application / Description
The biocompatible USB 3.0 cable is flexible and specifically designed for medical applications. The high-temperature-resistant cable offers enhanced notch and tear propagation resistance while maintaining excellent transmission properties and flexibility.

Product advantages

• biocompatible jacket material
• biological safety according to EN ISO 10993-1; cytotoxicity per EN ISO 10993-5
• high temperature resistance
• high notch and tear propagation resistance
• very good flexibility
• non-tacky surface
• transmission length up to 3 m
• excellent data transmission characteristics

Additional information

• also available as an assembled cable, e.g. with USB Type A and USB Type B connectors

Construction
Conductors: 28 AWG: silver-plated Cu fine-stranded; 26 AWG: tinned Cu fine-stranded
Insulation: FEP
Core identification: 28 AWG: yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0); 26 AWG: red, black (power supply)
Stranding: USB 3.0 pairs stranded and shielded; USB 2.0 pairs stranded; all elements stranded together
Drain wire: bare Cu fine-stranded
Shielding: aluminum foil
Wrapping: tape
Outer shield (braid): braid of tinned Cu round wires
Jacket material: SABmed S
Jacket colour: grey (RAL 7000)

Dimensions
Part no. | Configuration | Outer-ø approx. | Cu count | Cable weight ≈ | DC resistance at 20°C max. Ω/km (28 AWG) | DC resistance at 20°C max. Ω/km (26 AWG)
L06069018 | 2 x (2 x 28 AWG)ST + 2 x 28 AWG + 2 x 26 AWG | 5.6 mm | 25.4 kg/km | 48 kg/km | 223 | 140

Downloads
Datasheet for USB 3.0 M (PDF available).

Technical specifications

• Operating peak voltage: max. 50 V
• Test voltage: conductor/conductor 600 V; conductor/screen 600 V
• Minimum bending radius: fixed installation: 5 x d; flexing: 10 x d
• Temperature range: static: -40 / +180 °C; moving: -25 / +180 °C
• Characteristic impedance of data pairs: nominal 90 Ω
• Substance-free according to the EU RoHS directive
• Biocompatible jacket material and EN ISO 10993-5 compliant cytotoxicity
• Dimension example (Part no. L06069018): outer-ø approx. 5.6 mm; cable weight and DC resistances see table
