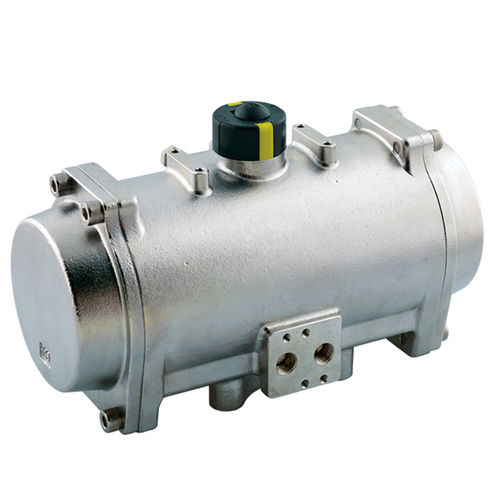

Pneumatic actuator RAXrotaryrack-and-pinionspring-return
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Technology
- rack-and-pinion
- Configuration
- spring-return
- Material
- stainless steel
- Applications
- for harsh environments
- Other characteristics
- quarter-turn, corrosion-resistant
- Pressure
Max.: 8 bar
(116.03 psi)Min.: 2 bar
(29.01 psi)- Rod diameter
Max.: 300 mm
(12 in)Min.: 45 mm
(2 in)- Torque
Max.: 6,104 Nm
(4,502.079 ft.lb)Min.: 3 Nm
(2.213 ft.lb)- Operating Temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)
Description
Our new series of pneumatic actuators RAX was designed with rack and pinion, Stainless Steel AISI 316 body with double and single acting version with return springs. This type of actuator is equipped with a top indicator multi open-close function and the adjustment of the opening / closing as standard. The main feature of these actuators is the very high resistance in environments with aggressive conditions. The general structure and the assembly of the internal parts ensure high performance and long life cycles.
Catalogs
Rotary Actuators
40 Pages
