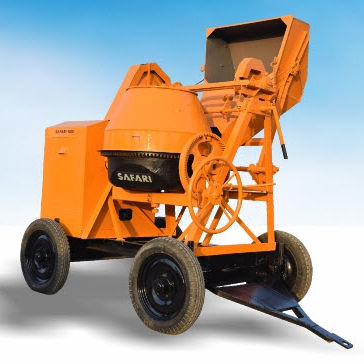

Self-loading concrete mixer SAFARI 1000-C

Safari 1000 series of Concrete Mixer are the highest quality 10/7 cft concrete mixer and is used to mix cement, sand & other aggregates to produce cement of the required grade. Self Loading Hopper of mechanical type provides ease of loading mixing material to the tilting drum of 10/7 mixer. Applications:- Mixing of concrete with self loading hopper on construction sites. Concrete Mixer 10/7 Features » Heavy Duty Cast Iron Tilting Drum enables easy tilting of drum thus reducing fatigue for the worker and increasing output considerably. » Special platform provided on operating side for convenient & safe operation of the machine. » Tyre Axle with locking system » Brand New Pneumatic Tyres » Heavy Duty M.S. Channel Chassis Capacity - Unmixed : 10 cft. Mixed: 7 cft. Volume - 450 Litres. Optional 500 Litres Prime Mover - 6.5 HP air cooled HSD diesel engine/5 HP 3 phase Electric Motor Hopper - 3.15 mm thick M.S. hopper mechanically operated, clutch type. Wire Rope - Usha Martin 10 mm – 6×36 Drum Speed - 18 rpm Wheels - Brand new 600 x 16 pneumatic tyre with hub & bearing system, and pressed steel plate rims – 4 Nos Handi Yoke - 100x100x5 mm C Section M.S. channel, Bearing System Chassis - Heavy Duty M.S. 125 x 65 mm Channel chassis equipped with jack on all four sides for levelling the machine. Drive Chain - Rolon brand
