Automatic elevator Vision AS

electricrack-and-pinionhydraulic

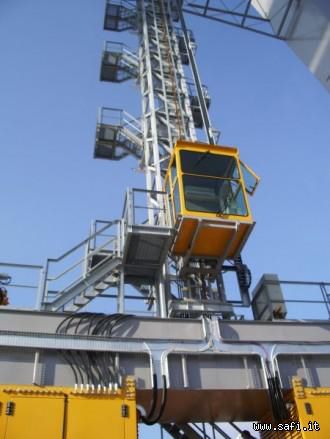

The AS stand for construction elevator for Personnel & Material use , the certified Elevators manufactured by SAFI in Italy can be used for Passenger & material. The Vision As hoist has a different Load capacities 1300/1500/2000/2500/3000/35000kg , Safi’s Builder hoist has a standard dimension of 3.00 x 1.50 meter & the height of 2.30 meter, The medium dimension of the Builder hoist Vision AS makes it a good solution for a Solid & strong access system with huge capacity which can be installed in industrial & construction sectors, The elevator has a solid structure in the design e components which can be manufactured according with client needs & specifications. The Builder lift has an innovative design which meets all CE safety requirements for working in safety. The rack and pinion system in such machines gives the possibility to reach the maximum height of 250 meters. The industrial elevator has different mast sections shapes ( Square, triangular & flat mast section ), controlled be electric motors made in Germany with a standard speed of 34 m/m till 90 m/m & can be operated in different climate ( from – 40 till +55 ), Hoist doors can be made with different way of opening system ( Sliding vertically or horizontally or with a normal pull opening system ). Colour , Speed, dimensions & entrance & exit doors can be customised as per client needs & requests.
