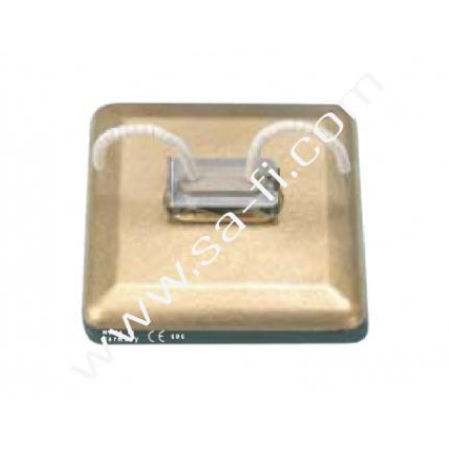

Ceramic radiant panel SHTS

electric

Elstein T-SHTS Ceramic Infared Panel Radiators with K type ThermocoupleT-SHTSCeramic Infrared Heaters Elstein SHTS super high temperature radiators were developed to increase the previous maximum possible surface rating of ceramic panel radiators from 64 kW/m² to 77 kW/m². The SHTS radiators, produced using the hollow casting ceramic process, are filled with thermal insulation material and have a special black glaze and a goldplated back. At an operating temperature of 900 °C, over 75 % of the electrical energy supplied is transferred to the material to be heated as medium to longwave IR radiation. SHTS series radiators are therefore particularly suitable for use in plant construction, in which special solutions have to be drawn up for the customer‘s specific needs and for applications requiring high outputs. The four designs cover the power range from 300 W to 1200 W and have customary market dimensions. Existing IR equipments can therefore be retrofitted with Elstein SHTS series radiators.
