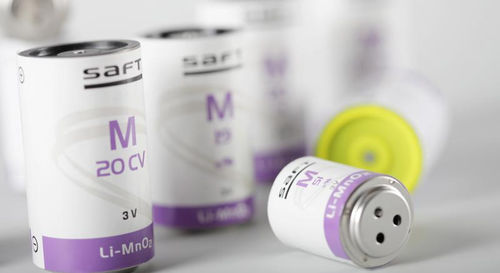

Lithium-manganese dioxide battery M series

D typeC type3 V

The Saft LM/M cylindrical primary lithium cells are based on lithium-manganese dioxide (Li-MnO2) chemistry. They feature high surface area spiral electrodes for high power and maximum current pulse capability and an electrolyte formula for excellent performance in low temperatures. They are designed specifically for applications featuring continuous currents in the 0.1-5A range, with superimposed pulses as high as 5A. They deliver minimal voltage delay, even after long-term storage in uncontrolled temperature environments. Features & Benefits High voltage, stable throughout the application lifetime Excellent resistance to passivation, even after long-term storage in uncontrolled temperature environments Safe and reliable high-power performance in potentially explosive atmospheres ATEX (C- and D-size EX cells) Wide operating temperature range (- 40°C to + 70°C) Low self-discharge compatible with long shelf life and long operating life High capacities at high currrents Released capacity independent of the cell orientation Excellent safety record Technical Specifications Spiral construction Cylindrical format: 1/3A to DD Operating temperature: - 40°C to + 70°C Non-corrosive electrolyte Compliance with the European directive RoHS
