Ni-Cd battery Tel.X series
rectangular12 V9 V

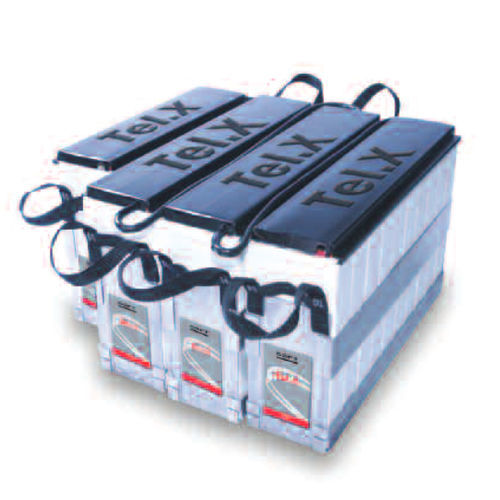

Ni-Cd battery - Tel.X series  - SAFT - rectangular / 12 V / 9 V
Ni-Cd battery - Tel.X series  - SAFT - rectangular / 12 V / 9 V
Add to favorites
Compare this product

Characteristics

Type
Ni-Cd
Configuration
rectangular
Voltage
12 V, 3 V, 24 V, 48 V, 6 V, 9 V
Applications
for telecommunications equipment, emergency power supply
Other characteristics
high density energy, maintenance-free, high-capacity
Load capacity

75 Ah, 97 Ah, 140 Ah, 172 Ah

Length / diameter

Min.: 128 mm
(5 in)

Max.: 659 mm
(25.9 in)

Width

105 mm
(4.13 in)

Height

254 mm
(10 in)

Weight

Min.: 5.8 kg
(12.79 lb)

Max.: 31.7 kg
(69.89 lb)

Description

Saft’s Tel.X nickel batteries range, for wireless and wireline backup power, is particularly well adapted to on-grid applications in hot climates and is ideal for telecom backup for use in access node, base transceiver stations, small cells and other equipment. Tel.X nickel battery is compatible with all existing and new telecom equipment and is available in a wide range of capacities making it a perfect direct replacement for VRLA batteries where space is limited and there is limited weight capacity. Maintenance-free and easy to install, Tel.X Ni-Cd battery is high-energy density, compact and 30% lighter than a conventional lead-acid battery. It can be delivered in a standard rack at either 48 V or 24 V, with the option of a rack system suitable for use in level-4 seismic zones.
