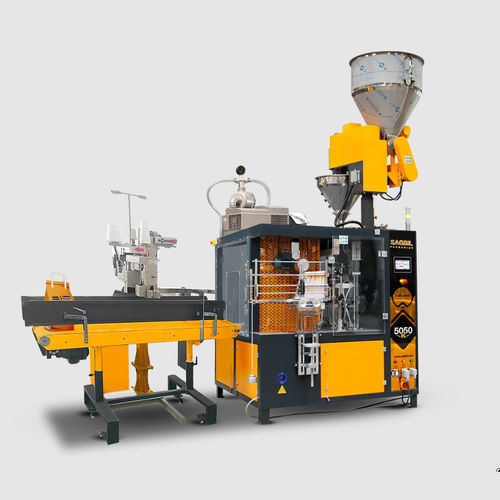

Vertical bagging machine PAKETTO 5050K DM+BT

VFFSfully-automatic

Performs filling into flat-bottomed, ready-made paper bags of lKg, 2Kg, and 5Kg. Ail opérations are controlled via a touch-operated PLC screen. The system is equipped with a fully automatic lubrication system. A dust extraction unit is integrated into the filling system. The machine is fitted with a 200 Kg stainless steel silo. Métal surfaces are pre-treated against corrosion prior to painting. The machine coating consists of durable static paint. Ail product-contact surfaces are made of stainless steel. Métal surfaces are coated with nickel and a darkening Chemical treatment. Thanks to the triple-sensor package inspection system, no external product leakage occurs from inside the package. * A screw and volumetric system is used for filling powdery and granular products such as flour and semolina. * Fills 1 kg, 2 kg, and 5 kg flat-bottomed, ready-made paper bags. * All controls are performed via a touchscreen PLC display. * The entire system has automatic lubrication. * A dust extraction system is available on the filling system. * The machine has a 200 kg stainless steel silo for powdery products and a 50 kg stainless steel silo for granular products. * Metal surfaces are coated against corrosion before painting. * The machine paint is durable static paint. * All surfaces in contact with the product to be packaged are stainless steel. * Metal surfaces are nickel-plated and blackened, making them stainless steel. * A speed-adjustable vibration system is available. * Electrical components: Schneider (France) * Pneumatic components: Festo (Germany) * Vacuum holders and suction cups: Festo (Germany) * Reducers: Yılmaz Reducer (Turkey)
