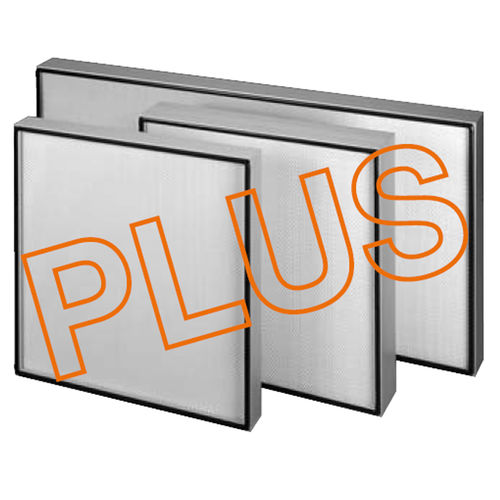

Air filter AB PLUS, MAB PLUS, DAB PLUS

panelmini-pleatabsolute

ABSOLUTE FILTERS FOR UNIDIRECTIONAL FLOWS WITH LOW PRESSURE DROPS The DELTA range of HEPA H14 mini-pleat filters for unidirectional flows with low pressure drops can save up to 20% of energy compared to other filters of the same size and flow rate capacity. They are suitable for use in systems and equipment that require high air purity levels: - Laminar flow fume hoods, isolators, down cross and LAF; - In terminal filters (DIF-P/A, DIF-K/S, Pharmasafe) to maintain clean zones for pharmaceutical production, production machinery and weighing systems; - In filtration ceilings (DIF-O.T.) in operating theatres and ancillary rooms in the hospital sector; - in air intake grilles (DEC-A, DEC-S) for contamination-controlled environments; - in production tunnels in the electronics industry. Constructed in an ISO 7 environment; Compliant with EN 1822-4, individually tested in ISO 5 environment (scanning test OPC/Photometer) and labelled; Individually packaged in controlled ISO 5 environment; CE certification; Extruded aluminium frame, depths 68, 90 and 115mm; Water-repellent, fire-retardant micro-fibreglass filter media; Micro-stretched aluminium protection grid painted in white epoxy paint; Continuous thermoplastic spacers; Bicomponent polyurethane sealant; One-piece seal.
