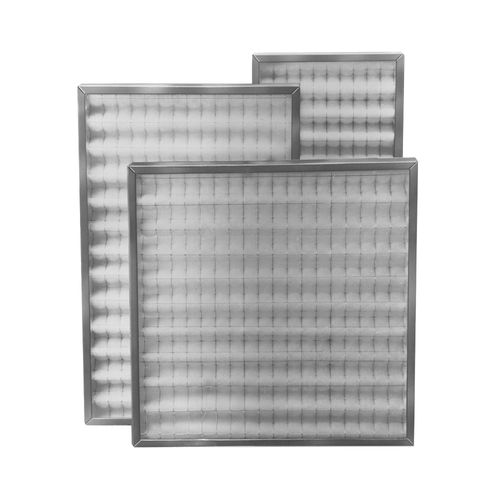

Air filter PFO/E series

dustpanelactivated carbon

The PFO/E, PFO/S and PFO/H range of filter panels are used as the first filtration stage in filtering coarse particles, and have been tested in accordance with standard EN 779:2012, efficiency G3-G4. The filter medium is made from corrugated synthetic fibre, which increases the filtration area and enables higher dust collection capacity. Applications: pre-filters upstream of high efficiency/absolute/active carbon filters; for general air-conditioning applications, in paint booths, in air processing units; in unit heaters. Installed in in-duct housings (mod. Multimod) or within special subframes (mod. CT 10, 20, 30) with flat fixation (face velocity up to 2.5m/s) or V-fixation (face air velocity up to 3.5m/s). Corrugated synthetic filter panels, GAMMA range, models PFO/E, PFO/S and PFO/H. Corrugated surface synthetic fibre filter media; Frame in galvanised steel sheet; Two galvanised steel electrowelded containment meshes. Available in 48 and 98mm thickness. On request: Class 1 fire-retardant acrylic fibre filter media (Ministerial Decree of 26/06/1984). Version ATEX 2GD II T6 Good filtration performance with medium-sized particles; High dust-accumulation capacity; Good mechanical resistance; Larger filtration surface compared to same face-size flat panels; Long-term reuse of washable filters for reduced maintenance costs; Can be installed both horizontally and vertically.
