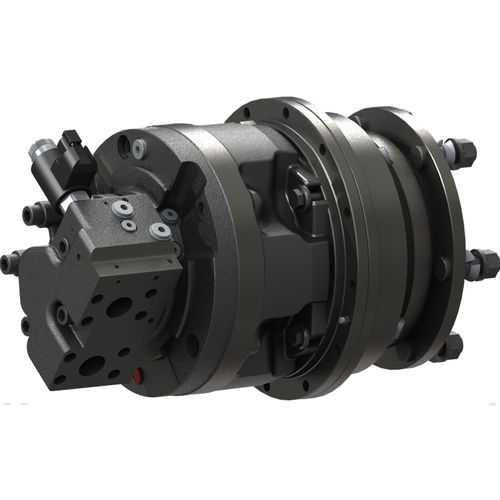

Gear hydraulic wheel motor BV1 + G3A
variable-displacement

gear hydraulic wheel motor
gear hydraulic wheel motor
Add to favorites
Compare this product


Characteristics

Technology
gear
Other characteristics
variable-displacement
Pressure

Max.: 42,500,000 Pa
(6,164 psi)

Min.: 0 Pa
(0 psi)

Rotational speed

Max.: 300 rpm
(1,884.96 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Torque

Max.: 19.4 Nm
(14.31 ft.lb)

Min.: 4.3 Nm
(3.17 ft.lb)

Displacement

Max.: 1,215 cm³
(41.08 US fl oz)

Min.: 270 cm³
(9.13 US fl oz)

Description

Variable displacement motor coupled with planetary gearbox with 7:1 or 5:1 reduction ratio, also available with negative brake (F10L). The G3 gearbox is additionally available with different types of hub (31A, 31B, 31D).
