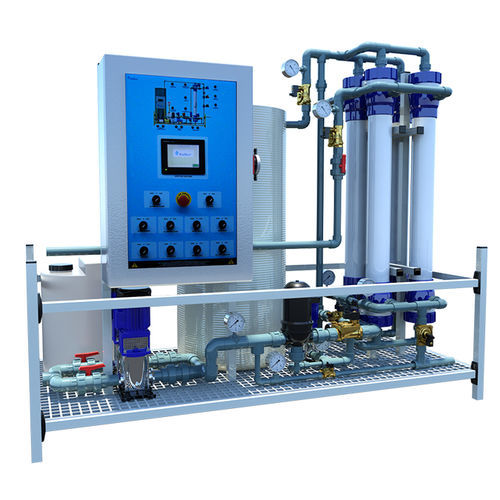

Water purification system PUR-UF

for industrial applicationsby filtration

They are very effective systems to remove suspended solids, organic matter, turbidity, pathogen microorganisms and specific metals. These treatments can also be used as pretreatment systems in process of reverse osmosis. Compact water purification plants through ultrafiltration are designed in accordance with RD 140/2003 and recommendations of the World Health Organization (WHO). They can be installed on GFRP structure with hydraulic and electrical interconnection of the elements and a panel board with optional PLC. The equipment is composed of the following elements: Ring filter with different filtration degrees. Vertical ultrafiltration modules of high efficiency with hydrophilic tubular membranes, with reinforced hollow fiber with porosity < 0,1 μm. Cleaning system composed of raw water tank, reagent tank, dosing system, compressor and cleaning circuit pump.
