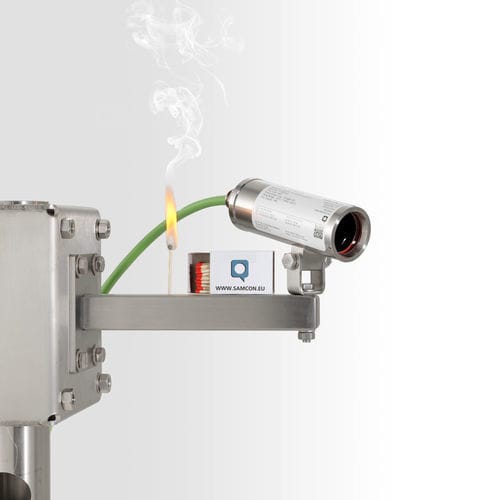

Hazardous area camera ExCam® XI410

analogmonitoringthermal imaging

The ExCam XI410 is a powerful thermographic camera with an integrated infrared thermometer and motor focus for use in potentially explosive areas. It delivers excellent infrared images (384x240p) of measurement objects in a temperature range from -20°C to 900°C. In addition, the thermal imaging camera has a software with extensive analysis functions (e.g. thermal analysis with hot and cold spots). The Excam XI410 can not only see where it is hot, it can also measure the temperature exactly. Like all cameras in the ExCam series, it is certified according to European regulations (ATEX) as well as international ones (IECEx). These certificates and further documents can be found in the download area. Features. > Certification for Hazardous Areas (ATEX & IECEx) > Ultra-Compact and Leightweight Thermal Imaging Camera with integrated IR-Thermometer > Thermal Technology with 384x240p Resolution > Exact Temperature Measurement from -20°C to 900°C > Thermal Sensitivity NETD 0.08°C > Imager with Motor-Focus > Four Optics available > Autonomous Operation with Automatic Spot Finder > Automatic Calibration > Single-Cable-Solution (Ethernet, Power, I/O) > Protection Level of IP66/68 (IEC 60529) > Software with extensive Analysis-Functions > Extensive Accessories Rugged measuring thermal camera with ATEX and IECEx-certification Besides the European regulations (ATEX), the ExCam series is also certified according to international regulations (IECEx). The housings’ certification comprises ATEX group II (Gas and Dust) for zone 1, 2 as well as 21 and 22 including the explosion groups IIC / IIIC with a high risk of mechanical threat.
