Rotary blade cutting machine Long Ocean DYDB-2
for fabricsstrip fabricfor industrial applications

Rotary blade cutting machine - Long Ocean DYDB-2 - SAMEX - for fabrics / strip fabric / for industrial applications
Rotary blade cutting machine - Long Ocean DYDB-2 - SAMEX - for fabrics / strip fabric / for industrial applications
Rotary blade cutting machine - Long Ocean DYDB-2 - SAMEX - for fabrics / strip fabric / for industrial applications - image - 2
Rotary blade cutting machine - Long Ocean DYDB-2 - SAMEX - for fabrics / strip fabric / for industrial applications - image - 3
Add to favorites
Compare this product
Go to the SAMEX website for more information

Characteristics

Technology
rotary blade
Material
for fabrics
Product handled
strip fabric
Applications
for industrial applications
Configuration
bench-top, floor track
Other characteristics
automatic, high-speed, precision

Description

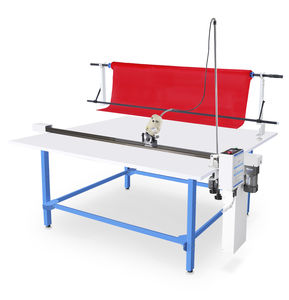

The Long Ocean DYDB-2 automatic end cutter cuts single layers of fabric quickly and accurately.

The cutting head moves automatically along a track rail mounted on the table top.

PRODUCT BENEFITS

  • Handles fabric layers up to 5 mm thick
  • Compatible with tables up to 320 cm wide
  • The rail-guided cutting head ensures precise and consistent cuts with 1 m/s speed
  • Cuts most fabrics, including tougher materials, thanks to a high-speed motor running at 12,000 rpm
  • The control unit features a cut counter, setting the travel distance and adjusting the track rail lift height

TECHNICAL SPECIFICATIONS

  • Max. cutting height of one layer: 5 mm
  • Cutting capacity: 20 cm
  • Cutting width: up to 240 cm (standard), optionally up to 320 cm
  • Cutting speed: 1 m/s
  • Blade speed: 12,000 rpm
  • Blade type: round, 108 mm diameter
  • Automatic track rail raising: yes, with lift height adjustment
  • Cut counter: yes, editable
  • Travel distance setting: yes
  • Output power: 200 W
  • Power supply: 230 V
