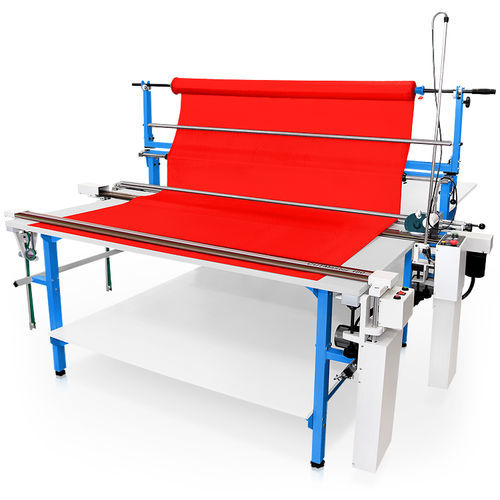

Semi-automatic spreading machine CUTMaster Super 240

for textiles

CUTMaster is an integrated unwinding and cutting system that combines manual material stacking with an automatic cutting process.

It cuts both natural and synthetic fabrics — woven, nonwoven, and knitted.

PRODUCT BENEFITS

• Increases unwinding efficiency by 50% to over 100% compared to manual unwinding
• A single person can manage the entire process
• The modular design allows for custom dimensions and multiple options
• Dust-proof rails ensure smooth movement and eliminate jams

TECHNICAL SPECIFICATIONS

• Table width: 1820 mm
• Segment length: 1400 mm (total length customizable)
• Cutting head speed: 1 m/s
• Cutting accuracy: 5 mm
• Max. unrolling capacity: 200 mm
• Max. roll width: 1800 mm (up to 3200 mm available upon request)
• Max. roll weight: 150 kg

CONSTRUCTION

• Powder-coated steel profiles
• Chrome-plated steel tubes
• 25 mm solid surface with 2 mm PVC edge protection

VERSIONS

• Super – automatic cutting (cutting capacity up to 5 mm)
• Super Plus – automatic cutting (cutting capacity up to 25 mm)

OPTIONAL EQUIPMENT

• Pneumatic holding bar
• Adjustable blade rotation speed
• Rotating bar
• Roll basket
• Spreading board
• Paper dispenser
• Lower shelves
• Extra large cones
