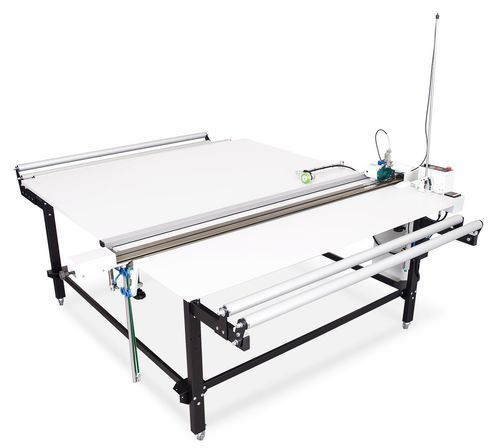

Fabric rewinder WindMaster Super

manualwith length measuring device

WindMaster Super is a fabric rewinding machine designed to transfer material from bulk rolls to smaller rolls with precise length measurement and automated cutting.

PRODUCT BENEFITS

• High-precision rewinding system achieves 1 mm accuracy
• Automatic cutter cuts materials at up to 1 m/s
• Intuitive control panel with width settings and cut counter
• Pneumatic holding bar ensures firm fabric pressure via button or foot pedal
• Large feeding basket accommodates rolls up to 50 cm in diameter
• Safety system includes blade covers, a start lock, and emergency stop

TECHNICAL SPECIFICATIONS

• Table width: 1700 mm (other on request)
• Table length: 2000 mm (other on request)
• Table height: 870–900 mm (adjustable)
• Measurement device: 1 mm precision encoder with digital display
• Fabric feeder: basket for rolls up to 50 cm diameter
• Cutting head: 108 mm circular blade
• Blade speed: 12000 rpm (optionally adjustable)
• Cutting speed: 1 m/s (optionally adjustable)
• Cutting height capacity: 5 mm
• Cutting precision: 1 mm
• Power: 250 W
• Voltage: 230 V

CONSTRUCTION

• Powder-coated steel profiles, bolted design
• Anodised aluminium tubes and elements
• 25 mm table top with 2 mm PVC edging

OPTIONAL EQUIPMENT

• Various unwinders to suit roll types
• Blade cutting speed adjustment
• Cutting speed adjustment
• LED backlighting unit
• Bottom shelves
• Spare parts kit
• Castors
