Guide pillar GPPKM

Product overview

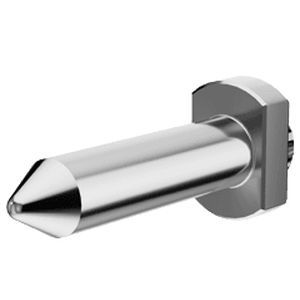

The GPPKM series SureWare™ guide post mates with the GPSKM guide post socket (with grounding pin). Intended for blind-mate board-to-board and rugged/power hardware applications. Series parts and example configured part number are shown (e.g. GPPKM-01-01-2).

Features

• Supports blind-mate applications
• Rated for 500 mating cycles
• Compatible with right-angle / perpendicular mated sets from multiple connector families: SEAM-RA / SEAF, SEAF-RA / SEAM (SEARAY™), SEAF8-RA / SEAM8 (SEARAY™ 0.80 mm), TFM-RA / SFM (Tiger Eye™), FTSH-DH / CLP, ERM8-RA / ERF8 (Edge Rate®), QRM8-RA / QRF8 (Q Rate®), QMS-RA / QFS (Q2™)

Mating information

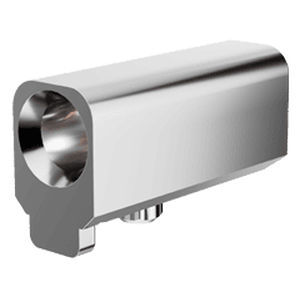

• Mates with GPSKM guide post socket featuring a grounding pin (GPSKM series)
• ASP versions available for VITA™ 90 VNX+ applications

Catalog pages and prints
PDF catalog page and product print files available for the GPPKM series (product-specific catalog and prints).

Prints and footprints
Product prints and footprint files provided for the GPPKM/GPSKM series (footprint file available for GPPKM/GPSKM).

Test reports
Design qualification test report available for the GPPKM/GPSKM series (product-specific qualification report).

Compliance
Material declaration and EU RoHS / REACH compliance resources referenced for this product family.

Packaging
Packaging options include tape and reel and parts per tube for GPPKM series.

Technical specifications

• Series name: GPPKM (SureWare™ Guide Post)
• Example configured part: GPPKM-01-01-2
• Mating cycles: 500 cycles
• Application: blind-mate board-to-board; mates with GPSKM guide post socket (with grounding pin)
• ASP versions: available for VITA™ 90 VNX+ applications
• Packaging: Tape and Reel; Parts per Tube
