- Detection - Measurement
- Flow, Pressure and Level Measurements
- Analog pressure sensor
- SAN GIORGIO S.E.I.N s.r.l.

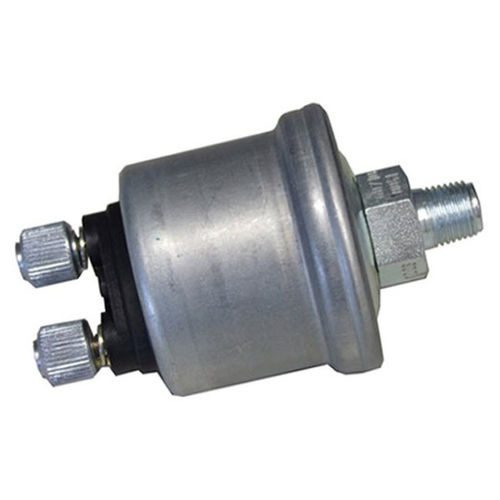

Analog pressure sensor VSG4001x/PI seriesthreaded
Add to favorites
Compare this product
Characteristics
- Output
- analog
- Mounting
- threaded
- Pressure range
Max.: 25 bar
(362.59 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 100 °C
(212 °F)Min.: -25 °C
(-13 °F)
Description
Match10-184 Ω
ConnectionInsulated
Nominal voltage6V - 24V
OverpressureMax. 30 bar - Max. 50 bar (VSG40017) 2s
Operating temperature-25 +100° C (120° Max 1 hour)
MaterialZinc treated
CustomizationOther threading on demand
