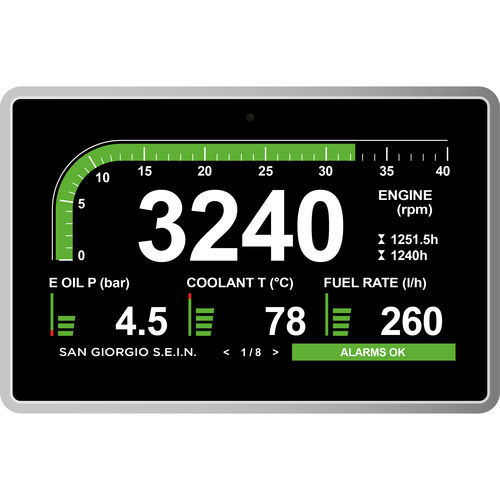

Monitoring control system UNS10193

measurementprotectiondigital

High performance compact monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a 7” touch screen display with integrated ambient light sensor and special software designed for visibility in any light and operating condition. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. Two J1939 CAN Bus ports, one also compatible with NMEA2000 standard, can be used to interface multifunction navigation systems. It can be customised and programmed via USB interface. Dimensions188 x 123 x 69mm Mounting hole178 x 114mm Display7” color TFT LCD, high brightness 700cd Resolutions800 x 480 pixel Touch screenCapacitive FrameSatin anodized aluminum Black satin anodized aluminum Inputs / Outputs4 x Analog inputs 0-10V / 4-20mA 4 x Analog inputs 0-300Ω 1 x Frequency input W alternator / pickup 5 x Digital Inputs / outputs Communication Ports2 x CAN Bus 2.0B 1 x NMEA2000 1 x NMEA0183 1 x RS232/485 1 x USB OTG Power supply9-36 V <500mA Operating temperature-20 +70 °C Protection gradeIP65 Weight840g
