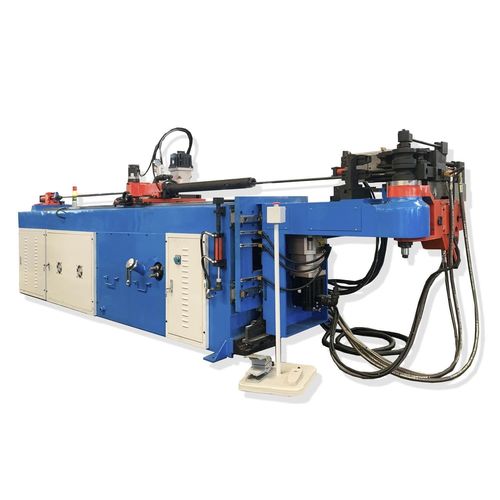

Electro-hydraulic bending machine SB-38CNC
servo-electricfor tubesfor flat profiles

electro-hydraulic bending machine
electro-hydraulic bending machine
Add to favorites
Compare this product


Characteristics

Operation
electro-hydraulic, servo-electric
Product handled
for tubes, for flat profiles, for aluminum profiles, bar
Control
CNC, PLC-controlled, fully-automatic
Number of axes
XYZ, 5-axis
Other characteristics
universal, mandrel, precision, multi-function, with multi-stack tooling, rolling, draw, cold, 3-phase, automated loading/unloading, 3D, single-head
Bending capacity

Max.: 38 mm (1 in)

Min.: 0 mm (0 in)

Bending radius

Max.: 200 mm (8 in)

Min.: 20 mm (1 in)

Description

It is fully automatic pipe bending machine. Bending pipe by electric (hydraulic as optional), feeding pipe by electric, rotating pipe by electric, clamping pipe by hydraulic, mandrel shift by hydraulic. Touch screen with English or any other language , PLC controller (Windows XP Industry PC as optional). Fan / water / oil cooling for your choice. With auto lubrication function. Electric and hydraulic parts from Japan, France and Germany. With Taiwan core tech since 1989. Max bending - Φ38X3 mm Mandrel length - 3000 mm Bending speed - 30-110 °/s Feeding speed - 250-900 mm/s Rotating speed - 30-210 °/s Bending precision - ±0.1° Feeding precision - ±0.1 mm Rotating precision - ±0.1° Max bending degree - 190° Working light Input data of Y, B, C or X, Y, Z Automatic lubrication system Pipe material: mild steel, stainless steel, copper, aluminum ... Round / square / rectangle / profile ... pipes and bars CE, ISO90001, UL, EAC marked Bend 1.0XD radius, or more tight radius Auto mandrel lubrication system Fan / Water / Oil cooling system Robot loading and unloading Windows XP controller Industry PC (3D tube showing, function of mirror image and reverted image) 3D bending simulation, can read CAD files Connect three coordinates measuring instrument Safe blanket / Infrared alarm device
