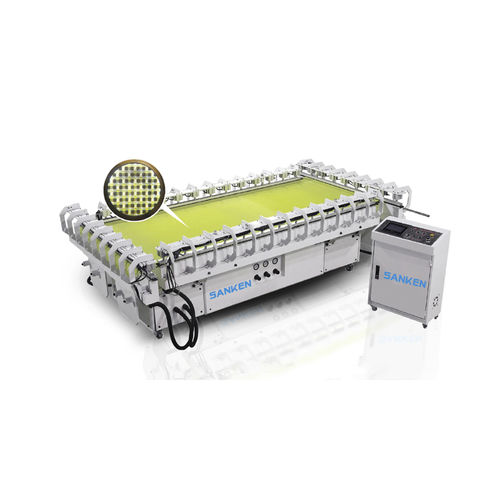

Screen printing stretching machine SKP-1520SA

Screen Stretching Machine The screen stretching machine is an auxiliary device for making screen stencil. Its working principle is to put the assembled screen frame on the machine first, and then spread the mesh, using the tension of the mesh to pull it to your The desired size. Then brush the mesh glue where the mesh is in contact with the frame and wait for it to dry, so that a preliminary screen is formed. Device parameters Model NO.: SKP-1520SA Max. screen size : 1500mmx2000mm Min. screen size : 1000mmx2000mm Pulling Force accuracy : ±0.5N Max. Pulling Force : 60N Power : 3KW Weight : 1000KG Machine Size : 2600*1700*910mm Air pressure : 0.5~0.7MPA
