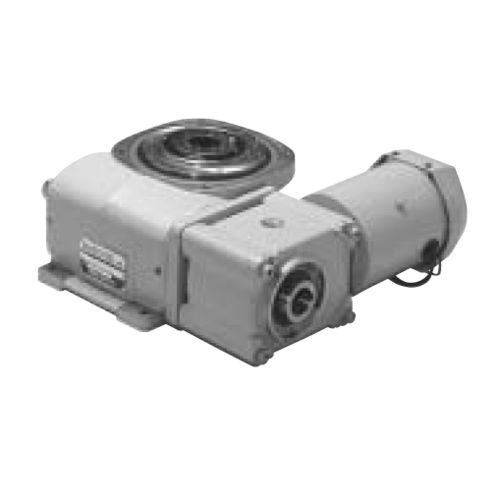

Rotary indexer AD series
globoidal camfor machines

rotary indexer
rotary indexer
rotary indexer
rotary indexer
rotary indexer
rotary indexer
rotary indexer
Add to favorites
Compare this product

Characteristics

Motion
rotary
Type
globoidal cam
Applications
for machines

Description

Input • Large shaft diameter & long cam length eliminates deflection during heavy loading to maintain positioning accuracy • Large shaft bearings support high speeds, larger diameters rotate less revolutions with more torque capacity • Cam is shimmed between bearing/housing to eliminate endplay, maintains accuracy • Hardened cam material reduces wear & surface flaking for longevity positioning accuracy Output • Standard units average ±9 arc second positioning accuracy with high accuracy units available • Industries largest cam diameters, high torque capacity for tooling crash survival (~30% larger) • Stationary through bore offers supply lines or wire routing & includes tolerance for bearing mounting • Stationary flange for mounting inspection tooling, part handlers or a riser above the indexing dial plate • Offset bearings support large bending moment capacity for unbalanced loading Housing • Maintenance free for life & seal with oil bath for high speed applications • Cast iron housing thermally expands at the same rate of the internal components to maintain accuracy • Housing & motor drive mounts in any angle, maintenance free • 8 housing size options, no extra cost for over-sizing with a large range of sizes Motor Drive • Geared motor drive is normally within the indexer height, no mounting plate burnouts or parallels • Standard 230 & 460 volt dual winding motors are versatile • 2 motor power options for each housing size, no extra cost for over-sizing with a large range of sizes
