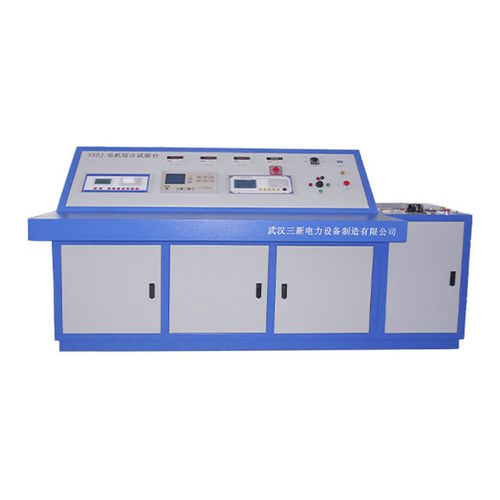

Voltage test bench SXDJ
automaticAC motorfor DC motors

voltage test bench
voltage test bench
Add to favorites
Compare this product


Characteristics

Test type
voltage
Operating mode
automatic
Test material
AC motor, for DC motors
Technology
electric
Configuration
portable
Other characteristics
with data logger

Description

The SXDJ is applied for ex-work and after maintaining testing on AC motor, DC motor and variable frequency motor with which capacity of 0-10000KW and voltage degree 0-10KV. The system is integrated with industry PC, power source system, controlling system, sensor, signal adjusting module, data sampling hardware & software, numerical computing software, graphical display & operation software, test report generating, waveform & measuring results storage and printing software. Features ♦ Fully English interface, auto printing, easy to operate. ♦ Motor AC hipot testing part is portably designed, easy to move. ♦ For HV motor of capacity 630KW-9000KW, voltage 6KV-10000V, it is needed to be equipped with 10KV booster, 10KV HV CT/PT and etc. Specifications Main Testing Items: ♦ Electric Strength ♦ Measuring condition ♦ Insulation Resistance ♦ Cold Resistance ♦ Low Starting Current ♦ Locked-rotor Current ♦ No-Load Power ♦ No-Load Current ♦ Leakage Current ♦ Turn-To-Turn Insulation
