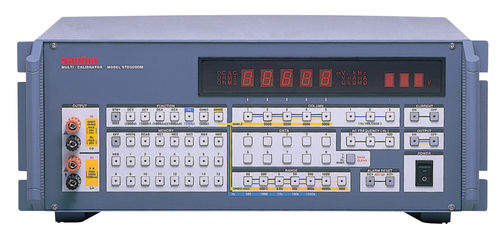

Multifunction calibrator STD5000Mfor electrical measuring instruments
Add to favorites
Compare this product
Characteristics
- Measured physical value
- multifunction
- Applications
- for electrical measuring instruments
- Voltage
Max.: 1,000 V
Min.: 0 V
Description
OverView
The STD5000M is a calibrator with soft touch buttons that can generate a desired DC voltage / current, AC voltage / current, resistance, frequency, etc. with a high degree of accuracy and stability.
The STD5000M is with a memory function allowing a broad range of uses for the device.
Ranges
■Voltage(DC·AC) : 0〜1000V(6 ranges)
■Current(DC·AC) : 0〜2000mA(6 ranges)
■Resistance1 : 0〜500kΩ(10Ω steps)
■Resistance2 : 24 steps fixed resistance value(4 kinds 6 ranges)
■Hz : 40Hz〜999kHz(5 ranges)
