Video measuring machine SM-8003visual
Add to favorites
Compare this product
Characteristics
- Technology
- video, visual
Description

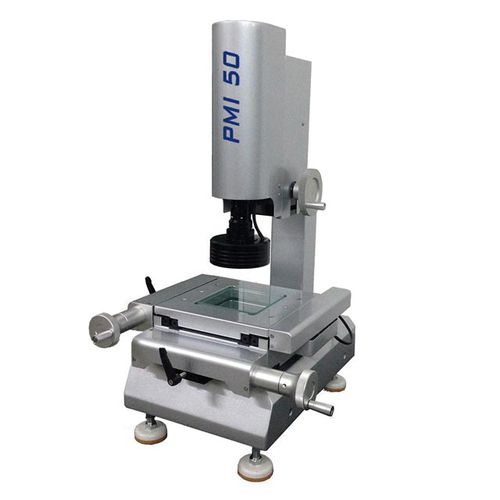

PMI Portable Image Measuring Instrument
Product Feature:
Full aluminum base + column + Workbench , high stability;
LED circular lamp, contour lamp,long service life
High-resolution, high-definition image effects, high-quality images
Glass scale, high accuracy and stability
Simple design, all-in-one USB connection
Parameter:
Measurement range:50×50×100
External dimension(mm）:350×450×650
Weight(kg) :50
Measurement Accuracy（um）2.5+L/200
Max Load （kg）: 10
Marble Base + Column: Aluminum
Workbench Glass Grinding glass≤3C
Workbench : Aluminum Resolution
Control system:Integrated control system (counting, light source, motion)
Operation mode:XYZ Manual Operation
Light source:LED ring light, contour bottom light
Objective lense:0.7X-4.5X manual multiplier lens, image magnification 28X-170X
Industrial cameras:Industrial high definition color CCD (SONY chip)
