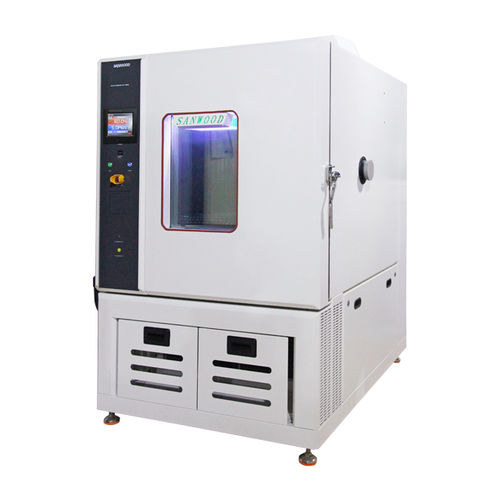

Climatic test chamber SMC-1000-CC-FBtemperatureenvironmentalfor environmental simulation
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature
- Test type
- environmental, for environmental simulation
- Product applications
- for battery, for electrical equipment, device, for vehicles
- Application domain
- European standards-compliant, international standards-compliant, for the aeronautical industry, laboratory, for small parts production
- Configuration
- floor-standing, vertical, on casters
- Light source
- LED
- Protection level
- explosion-proof
- Number of doors
- 1-door
- Chamber material
- stainless steel
- Options and accessories
- with temperature and climatic control, with window, touchscreen-controlled, PLC-controlled, temperature regulator
- Other characteristics
- stainless steel, low-temperature, for high temperatures, high-capacity, energy-saving, alternating
- Capacity
Max.: 1,500 l
(396.26 gal)Min.: 80 l
(21.13 gal)- Temperature
Max.: 180 °C
(356 °F)Min.: -70 °C
(-94 °F)- Interior length
1,000 mm
(39.37 in)- Interior height
1,000 mm
(39.37 in)- Interior depth
1,000 mm
(39.37 in)- External length
1,200 mm
(47.2 in)- External height
2,050 mm
(80.71 in)- External depth
1,780 mm
(70.08 in)
Description
Product introduction:
High and low temperature test chamber simulate high and low temperature environment to check whether the adaptability and characteristics of the product itself has been changed.
Features:
1. 1000 hour operation without evaporator frosting at low temperature
2. Refrigeration non heating control system power saving more than 30%
3. Automatically and effectively take away the heat from the test object.
4. 5.7 inch touch screen control system with multi language, Ethernet E management , USB data storage function, APP mobile platform management
Main parameters:
1. Standard inner volume: 22.5~1500Litres
2. Temperature range：-70℃～+180℃
3. Temperature uniformity：±1℃ （no load）
4. Temperature fluctuation：±0.5℃ （no load）
5. Temperature deviation：±2℃
6. Heating rate：3.0～5.0℃/min
7. Cooing rate：1.0～3.0℃/min
8.Inner chamber material: 1.5mm stainless steel (SUS#316)
9.Outer chamber material: 1.2mm cold rolled steel sheet, powder spraying
10. Heat insulating material: polyurethane board + mineral wool
11. Fan: Impeller fan
12. Compressor: closed type
13. Condenser: Air-cooled
14. Refrigerant: R404A, R23A
15. Evaporator: Air-cooled plate fin cooler
16. Heater: Nickel iron alloy heating wire
17. Ambient temperature: +5℃~+35℃
18. Safety: Cut off the control circuit, over temperature protection, overload relay, refrigerator protection circuit, leakage cut-off machine, external alarm scripts, water shortage alarm
19. Power supply: AC220V,1/N, 50Hz or AC380V,3/N, 50Hz
VIDEO
