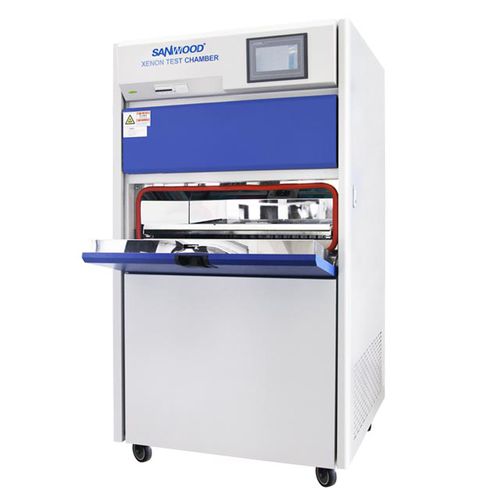

Test chamber with xenon arc lamp SM-B-SUN
climatichumiditytemperature

Test chamber with xenon arc lamp - SM-B-SUN - Sanwood Technology - climatic / humidity / temperature
Test chamber with xenon arc lamp - SM-B-SUN - Sanwood Technology - climatic / humidity / temperature
Test chamber with xenon arc lamp - SM-B-SUN - Sanwood Technology - climatic / humidity / temperature - image - 2
Test chamber with xenon arc lamp - SM-B-SUN - Sanwood Technology - climatic / humidity / temperature - image - 3
Test chamber with xenon arc lamp - SM-B-SUN - Sanwood Technology - climatic / humidity / temperature - image - 4
Test chamber with xenon arc lamp - SM-B-SUN - Sanwood Technology - climatic / humidity / temperature - image - 5
Test chamber with xenon arc lamp - SM-B-SUN - Sanwood Technology - climatic / humidity / temperature - image - 6
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity, light
Test type
environmental, aging, radiation, for environmental simulation
Product applications
for electrical equipment, for battery, for vehicles, electronic equipment
Application domain
European standards-compliant, international standards-compliant, for small parts production
Configuration
floor-standing, vertical, modular, mobile
Light source
with xenon arc lamp, LED
Protection level
with electronic lock
Number of doors
1-door
Chamber material
stainless steel
Options and accessories
with temperature and climatic control, remote-controlled, touchscreen-controlled, PLC-controlled, temperature regulator
Other characteristics
stainless steel, low-temperature, for high temperatures, automatic, high-capacity, accelerated, energy-saving
Power

6,000 W

External length

860 mm
(33.9 in)

External height

1,740 mm
(68.5 in)

External depth

800 mm
(31.5 in)

Description

Sanwood Xenon lamp weathering test chamber,Xenon lamp aging test chamber ,Xenon test chamber,Xenon Lamp Weathering chamber,Xenon Lamp Test Chamber is exported to Russia, Europe, USA, Canada and so on. In many outdoor environments, materials are often eroded by rain or other moisture. B-SUN's water spray can be better simulate the final environmental conditions. Water spray is very effective in simulating thermal shock or mechanical erosion due to temperature drastic changes and rain wash.In some practical application conditions, such as sunlight, when the accumulated heat rapidly dissipates due to sudden showers, the temperature of the material changes sharply, producing thermal shock, which is a kind of test for many materials. test. B-SUN's water spray can simulate thermal shock and/or stress corrosion. The B-SUN sprinkler system is designed with 2 nozzles, one piece on each side of the top of the test box; The sprinkler system can be operated for a few minutes and then closed.
