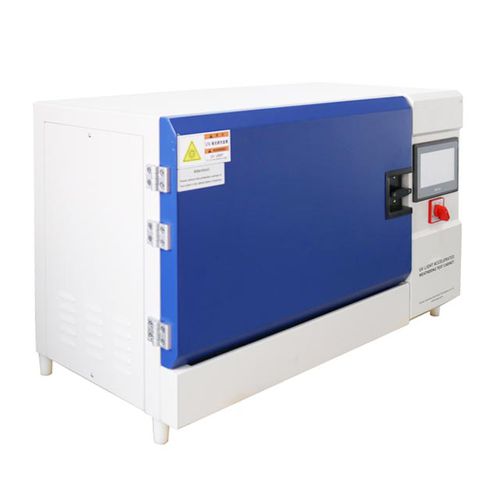

UV light aging test chamber

thermostatictemperaturesolar simulation

Bench-top UV lamp aging test chamber is an economic and easy-to-use machine which can meet some customers’requirements. It is equipped with 3 pcs 20W UV lamps as light sources. Operatorcan set the total illumination time, temperature, spray time etc to simulatethe natural environment which would cause the damaged factor to samples. This Bench-top UV weathering test chamber can isolate 18 pcs standard panels （Size is 150×70mm）. Samples are installed a column form rotating sample rack.During the test, the sample rack rotate uniformly and ensure every sample getthe same irradiance energy, increase the compariability and repeatability oftesting results. ◆ Touch screen and user-friendly operation interface allow handlers set the test parameters and monitor all the test process easily. ◆ Equipped with professional UV lamps who has high irradiance energy: 0.90W/m2（New lamp） ◆ Full stainless steel inner working room with sandwich design, never getting rusty and leakage. Also prevent water vapour coming from working room from entering electrical box and damaging electron components. ■ Total power：1.2 KW ■ Power voltage：220±22V/50±0.5Hz ■ Setable temperature range of working room：RT+5℃～60℃ ■ Setable range of test time ：1h～9,999h ■ Setable range of spray time ：1min-9,999min ■ Setable range of spray interval time ：1min-9,999min ■ Rated life of lamp：1,600h ■ Wave length of lamps ：313 nm （UVA Lamps） or 340 nm （UVB Lamps） ■ Lamp power：3 pcs ; each lamp is 20 W ■ Spray water ：2L/min ■ Capacity for test panels：18 pcs standard size panels ■ Specification of sample：150mm×70mm ■ Cabinet Size：930×460×630mm（L×D×H）： ■ Net Weight：72kg
