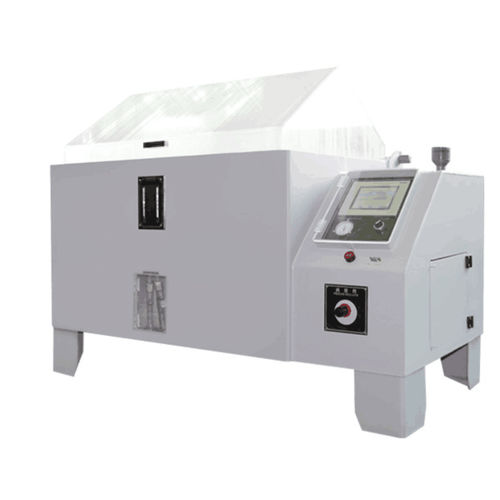

Climatic test chamber SM-Y-60D
humiditytemperaturesalt spray

Climatic test chamber - SM-Y-60D - Sanwood Technology - humidity / temperature / salt spray
Climatic test chamber - SM-Y-60D - Sanwood Technology - humidity / temperature / salt spray
Climatic test chamber - SM-Y-60D - Sanwood Technology - humidity / temperature / salt spray - image - 2
Climatic test chamber - SM-Y-60D - Sanwood Technology - humidity / temperature / salt spray - image - 3
Climatic test chamber - SM-Y-60D - Sanwood Technology - humidity / temperature / salt spray - image - 4
Climatic test chamber - SM-Y-60D - Sanwood Technology - humidity / temperature / salt spray - image - 5
Climatic test chamber - SM-Y-60D - Sanwood Technology - humidity / temperature / salt spray - image - 6
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
salt spray, salt spray corrosion
Product applications
for electrical equipment, for automobiles
Application domain
for quality control
Configuration
floor-standing
Light source
LED
Protection level
corrosion-resistant
Number of doors
1-door
Chamber material
stainless steel
Options and accessories
with window, touchscreen-controlled, PLC-controlled
Other characteristics
stainless steel, energy-saving
Capacity

108 l
(28.53 gal)

Temperature

Min.: 5 °C
(41 °F)

Max.: 30 °C
(86 °F)

Interior length

600 mm
(23.62 in)

Interior height

450 mm
(17.72 in)

Interior depth

400 mm
(15.75 in)

External length

1,050 mm
(41.3 in)

External height

650 mm
(25.59 in)

External depth

1,050 mm
(41.34 in)

Description

Salt Spraying Chamber summary: This 60L Humidity And Temperature Salt Spray Corrosion Test Chamber is a machine that the testing condition is the closest to the natural environment,it simulated condition that more often meet at natural environment, and then deteriorated the natural environment to be tested, such as the salt spray, dry, wet, room temperature, low temperature environment,it can be tested in any order or individually tested. Salt Spray Corrosion Test Chamber Applicable Industry: This Humidity And Temperature Salt Spray Corrosion Test Chamber is tested the corrosion resistance capacity of products, which stay in the intense change environment, such as automobile parts, aviation equipment, photographic equipment, building materials, electricity, electrical and electronic systems, Salt Spray Corrosion Test Chamber Features: 1.Salt spray test chamber With color touch screen LCD controller (Japan OYO U-8256P), which can record the testing curves. 2.Salt Spraying Test Chamber Control mode: temperature, humidity, temperature and humidity can do alternating control by the program. 3.Program Group Capacity: 140Pattern (Group) 1400Step (above) each program can be set up to Repest99 segment. 4.Each executive mode time can be arbitrarily set 0-999 hours, 59 minutes. 5.Each group can be arbitrarily set the cycle of 1-999 . 6.Has the power memory function, recovery after power continue to perform the not completed the test. 7 . interface RS232 connect with computer.

Catalogs

SM-Y-60D
SM-Y-60D
