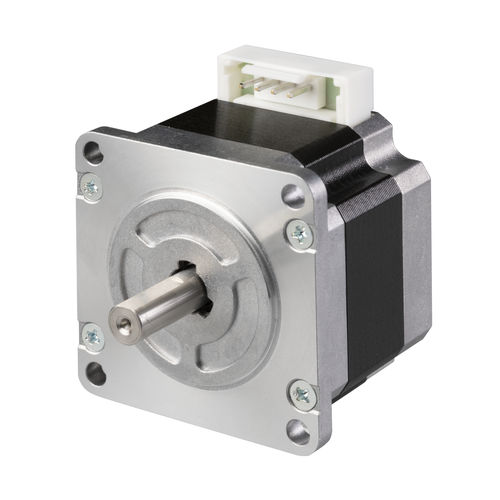

DC motor SM25 series

two-phase stepper24 V48 V

SANYO DENKI CO., LTD. has developed the SANMOTION F2 56 mm sq. 2-phase stepping motors, expanding the product lineup of the series. The new models achieve best-in-class(1) torque performance and high efficiency, therefore improving machine speed and contributing to energy savings. Features 1. High Torque Compared to our conventional model, torque performance has improved by approximately 40%.(2) This contributes to shortening the positioning time and machine cycle time. 2. Low Noise These motors have noise levels approximately 3 dB lower than the current model, reducing the noise level of machines.(2) 3. Energy Saving Motor efficiency has been improved by approximately 3% compared to the current model.(2) This contributes to reducing power consumption of machines and the motor’s heat dissipation. (1) Based on our own research as of May 25, 2021, conducted among equally sized industrial 2-phase stepping motors on the market. (2) A comparison between our current model 103H7123-5840 and new model SM2562C30B41. Main Specifications: Size: 56 mm sqaure Resolution: 1.8°/ step Holding torque: 0.53 to 2.5 Nm Winding: Unipolar and Bipolar models Single or Double shaft version Class B (130°C) & RoHS compliant, CE/UL Customization upon request These new motors have a high torque, low noise and high energy efficiency.
