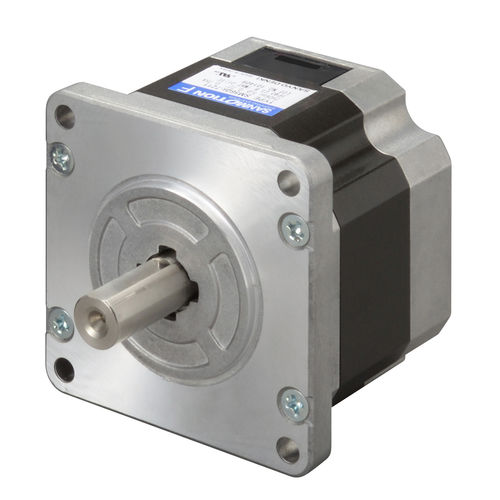

Two-phase stepper motor SHDC60 VNEMA 23
Add to favorites
Compare this product
Characteristics
- Type
- two-phase stepper, DC
- Voltage
- 60 V
- Configuration
- NEMA 23, NEMA 17
- Number of poles
- single-pole, 2-pole
- Torque
Min.: 0.2 Nm
(0.147512 ft.lb)Max.: 2.15 Nm
(1.585759 ft.lb)
Description
Main Specifications:
Size: 42mm square (NEMA 17) and 60mm square (NEMA 23)
Resolution: 0.9°/ step
Holding torque: 0.20 to 2.15 Nm
Current / phase: 1 to 2A
Winding: Unipolar and Bipolar models
Single or Double shaft version
Class B (130°C)
RoHS compliant
ECO Product label
VIDEO
