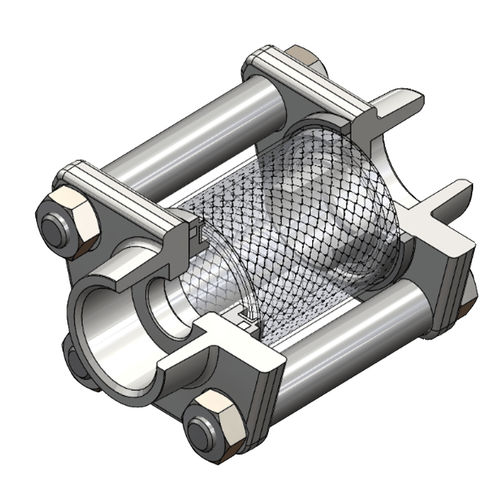

The Gachot® V16 Modular System enables you to place the following piping elements between flanges (same as those used to assemble the V16 Ball Valve):
Filter,
Sight,
Check valve
TECHNICAL DATA
Pressure : 6 bar max (depends on the pressure / temperature ratio and type of fluid.)
CONNECTION
Available in weld (BW and SW), threaded and conical gas / NPT, flanged (PN, Class) or others on request.
TECHNOLOGY
Tubular sight unit
Dual female nested borosilicate in upstream and downstream support
Upstream support with bevelled tube to avoid spashing fluid on borosilicate
Stainless steel guard
Compressive strength: 3,600 bar
Tensile strength: 150 bar
Face to Face: ISO 5752 Series 1 / EN 558 Series 1 / DIN 3202
Design standard: CODAP / EN 1983 / NF E 29-465 / NF E 29-466 / ISO 7121 / BS 5351
Flanges: Forged piece with a trapezoid shape for maintenance without dismantling fastening components.
