Electrical power supply connector 100-30 series
springinsulation4-pole

Electrical power supply connector - 100-30 series - SAS - spring / insulation / 4-pole
Electrical power supply connector - 100-30 series - SAS - spring / insulation / 4-pole
Electrical power supply connector - 100-30 series - SAS - spring / insulation / 4-pole - image - 2
Electrical power supply connector - 100-30 series - SAS - spring / insulation / 4-pole - image - 3
Electrical power supply connector - 100-30 series - SAS - spring / insulation / 4-pole - image - 4
Electrical power supply connector - 100-30 series - SAS - spring / insulation / 4-pole - image - 5
Add to favorites
Compare this product

Characteristics

Type
electrical power supply
Connection type
spring
Electrical characteristics
insulation, 4-pole, 2-pole, 3-pole
Material
polycarbonate, PC, wire
Product applications
cable
Domain
inspection
Other characteristics
flexible, lever
Voltage

450 V, 600 V

Operating temperature

Max.: 105 °C
(221 °F)

Min.: -40 °C
(-40 °F)

Description

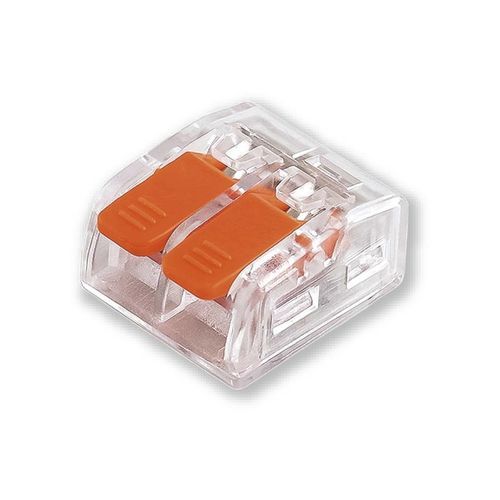

Lever wire connector with 2 poles for flexible and stranded (single core) cables. It facilitates the connection of cables in junction boxes and in luminaires. It is suitable for flexible cables 0.2-2.5mm² and stranded (single core) cables 0.2-4mm². Lever reusable wire connectors offer optimal and efficient connections for any installation with the easy-to-use lever function. They are made of high quality transparent PC allowing visual inspection of cable insertion and they are able to combine different conductor types easy and quick without the need of extra tools. Features: ✓ Insulation material: Polycarbonate (PC) ✓ Contact material: Tinned Copper ✓ Clamping spring material: AISI 301 stainless steel ✓ Connection technology: Lever

VIDEO
