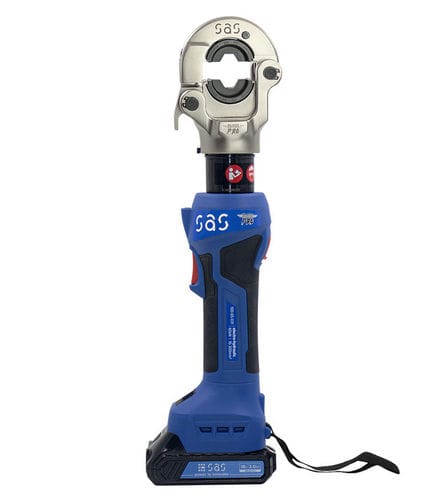

Electro-hydraulic crimping tool 100-65-031

for cable lugswith interchangeable diesbattery-operated

Product Details
The electro-hydraulic crimping tool is a professional-grade tool designed for crimping copper lugs from 16 to 300mm², making it ideal for demanding electrical installations. It features a 350° rotating head that ensures easy access in tight or hard-to-reach spaces, enhancing precision and convenience on the job. Powered by a Li-ion battery (1 piece included) and supplied with a charger, the tool delivers exceptional mobility, power, and long operating autonomy — perfect for work in the field. The OLED display provides essential operating information, while the integrated MCU controller ensures stable performance, accurate force control, and maximum safety during crimping. A reliable solution for electricians who need efficiency, consistency, and high crimping power on every installation.

Technical Table
Description | crimping range (mm²) | rated pressure (kN) | Crimping dies (pcs) | Weight (kg) | length (mm)
Electro-hydraulic crimping tool | 16-300 | 60 | 11 | 3.5 | 420

Features

• 350° rotating head: The tool head rotates up to 350° for improved access in confined workspaces.
• LED work light: Provides illumination during operation.
• Anti-slip handle: For non-slipping grip during usage.
• OLED display: Displays crimping cycles, battery power, and error information.
• Retract button: Manually retracts the piston in case of an incorrect operation.
• LED status indicator: Shows tool status and warnings.
• Tool storage hardcase: Hard plastic carrying case to protect the tool from drops and impacts.
• Rechargeable battery: 18V 2.0Ah lithium battery with a charging time of 60–90 minutes (charger included).
• Interchangeable dies – 11pcs: Durable interchangeable dies for cable lugs 16-300mm² (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300).

Additional Information

• *Rechargeable batteries available. Product code: 100-86-070

Characteristics / Technical Specifications

• Crimping range: 16-300mm²
• Rated pressure: 60kN
• Number of crimping dies: 11
• Weight: 3.5kg
• Length: 420mm
• Battery: 18V 2.0Ah Li-ion
• Charging time: 60–90 minutes
• OLED display for status and error reporting
• MCU controller for force and safety
• LED work light and status indicator
• Anti-slip handle
• Manual retract button
• Supplied with hard plastic carrying case
