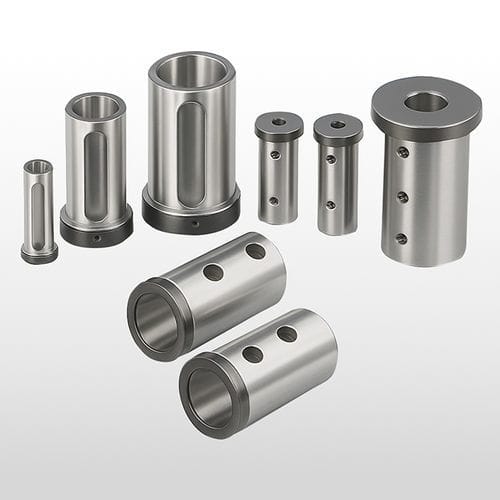

Reducing bushing BCL series

metalboring bardrill

The reduction bushes with flanges allow boring bars or drills with a cylindrical shaft or clamp cone to be fixed to the toolholders of numerically controlled machine tools. The following four different types of bushes are available: 1 cylindrical bush to be fixed to tool by dowels; 2 slotted cylindrical bush to be directly fastened to tool; 3 bush with taper; 4 elastic cylindrical bush. Many sizes are available for each type, so that our wide product range may satisfy the different needs of our customers. General features Cylindrical reduction bushes to clamp the tools directly in the tool holder of a CNC machines, with dowels or slotted. Slotted cylindrical bush to be directly fastened to tool D. 16 Cylindrical bush to be fixed to tool by dowels D. 19,05 Cylindrical bush to be fixed to tool by dowels D. 19,05 Cylindrical bush to be fixed to tool by dowels Slotted cylindrical bush to be directly fastened to tool D. 20 Cylindrical bush to be fixed to tool by dowels D. 20 Cylindrical bush to be fixed to tool by dowels D. 22 Slotted cylindrical bush to be directly fastened to tool D. 22 Cylindrical bush to be fixed to tool by dowels D. 25 Slotted cylindrical bush to be directly fastened to tool D. 25 Cylindrical bush to be fixed to tool by dowels D. 25,4 Slotted cylindrical bush to be directly fastened to tool D. 25,4 Cylindrical bush to be fixed to tool by dowels D. 32 Slotted cylindrical bush to be directly fastened to tool D. 32 Cylindrical bush to be fixed to tool by dowels D. 40 Slotted cylindrical bush to be directly fastened to tool D. 40 Cylindrical bush to be fixed to tool by dowels D. 45
