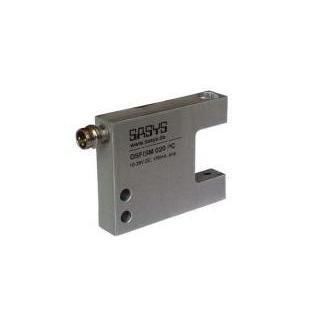

Presence monitoring device OSF/SM020PC

aerosolwateroil

DescriptionSASYS spray-monitoring sensor reliably monitors application of aerosols and liquid media onto surfaces, increasing process reliability of automated spraying processes. It detects whether a defined spray event actually occurs and enables immediate monitoring of media application.

Applications

• Monitoring of water, oil or other liquid media applied as fine spray mist on surfaces
• Activation of 1K adhesives by water mist
• Application of thin oil films on metallic and other surfaces
• Detection of misapplication, interrupted spraying cycles or lack of media supply to reduce scrap

Technical data (from page)

• Supply voltage: 10-28 Vdc
• Output: pnp, max. 150 mA
• Interference-resistant design for harsh industrial use
• Screw mounting
• Connections: M8 connector, 3-pin
• Dimensions: depending on version

Functional descriptionThe sensor detects the presence of a defined spray event and enables immediate monitoring of media application to ensure consistent process quality and increased operational safety in automated production lines.

Characteristics / Technical specifications

• Supply voltage: 10-28 Vdc
• pnp output, max. 150 mA
• Robust, interference-resistant industrial design
• Mounting: screw mounting
• Electrical connections: M8 connector, 3-pin
• Dimensions vary depending on version
