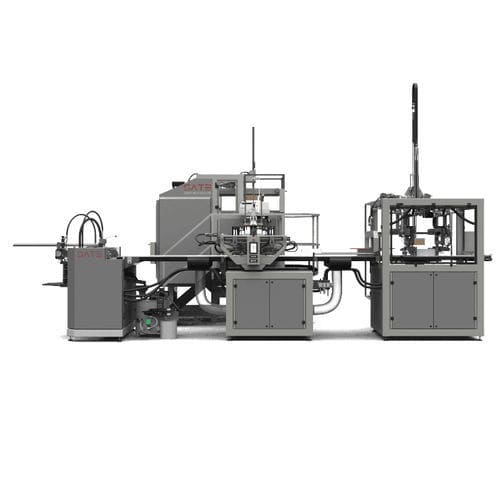

Rigid box making machine S500

automatic

All the innovation the S700 brought, in a compact, smaller and lighter format for less demanding applications. The S500 adds value to your production of luxury rigid boxes. spotter accuracy : 0,04 mm (0,0016") typ format change time : 20 min with 1 operator starting time: 10 min glue tank capacity : 90 l (23 U.S. gal - 19 U.K. gal) power absorption : 12,5 kW (40kW installed) air consumption : 175 l/min (6,18 ft³/min) length : 7780mm (306 19/64") width : 4520 mm (177 61/64") height : 4800 mm (188 31/32") net weight : 8500 kg (18739 lb)
