Characteristics
- Power
- 12W
- Applications
- for horn speakers, for alarm sirens, for burglar alarms
- Magnet material
- ferrite
- Other characteristics
- small-size
- Nominal diameter
12 mm (0 in)
- Power
12 W
Description

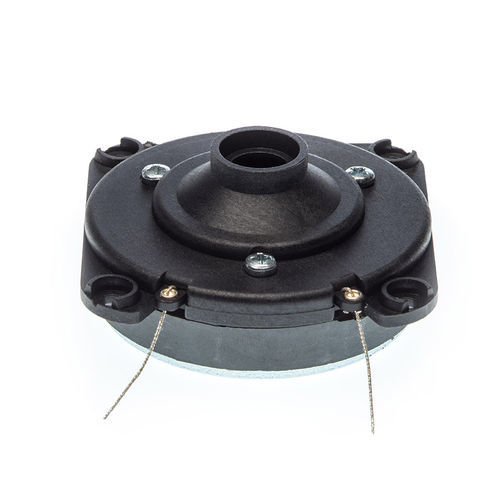

Small size ferrite transducer usable for applications where it is necessary reduced overall dimensions, suitable for horn speakers, alarm sirens and burglar alarms.
SPECIFICATIONS
THROAT DIMENSION:
ø12 mm
IMPEDANCE:
4-8-16 Ω
PHC (Power Handling Capacity):
8 W
PEAK POWER:
12* W
RESONANCE FREQUENCY:
1910 Hz
DIAPHRAGM MATERIAL:
PHENOLIC
VOICE COIL DIMENSION:
ø25,4 mm
MAGNET MATERIAL:
FERRITE
MAGNET SIZE:
ø60x7 mm
CASING MATERIAL:
PC
NET WEIGHT:
0,250 Kg
DIMENSIONS:
65×65x29 mm
CONNECTIONS:
wires, eyelets, lugs
