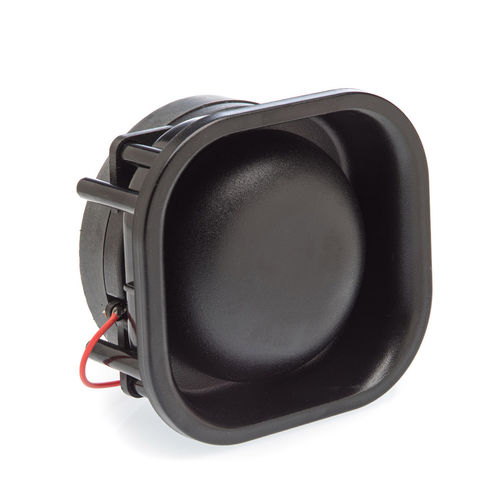

Flush-mounted loudspeaker CR120

flush-mounted loudspeaker
flush-mounted loudspeaker
Add to favorites
Compare this product


Characteristics

Mounting
flush-mounted
Sound level

107 dB

Description

High-output ferrite speaker suitable for any alarm purposes. Especially designed for installation in burglar alarms and safety equipment. SPECIFICATIONS IMPEDANCE: 4-8-16 Ω PHC (Power Handling Capacity): 25 W PEAK POWER: 40* W FREQUENCY RANGE: 800-5300 Hz SPL / 1m / 1W: 107 dB (1700 Hz) DIAPHRAGM MATERIAL: PHENOLIC VOICE COIL DIMENSION: ø38,63 mm MAGNET MATERIAL: FERRITE MAGNET SIZE: ø90x13 mm CASING MATERIAL: ABS COLOUR: BLACK NET WEIGHT: 0,860 Kg DIMENSIONS: 99x108x56 mm CONNECTIONS: wires, eyelets, lugs
