Characteristics
- Operation
- piezoelectric
Description

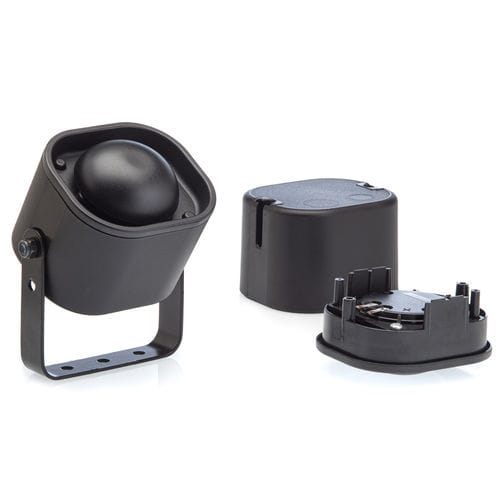

Compact size, high-performance low consumption piezoelectric loudspeaker particularly suitable for automotive applications.
The high quality of raw materials used and its construction has a high corrosion resistance.
See the product datasheet and choose the most suitable accessories for your project.
SPECIFICATIONS
IMPEDANCE:
500 Ω
MAX VOLTAGE:
150 Vpp
FREQUENCY RANGE:
1900-6000 Hz
SPL / 1m / 1W:
105 dB (3800 Hz)
CASING MATERIAL:
NYLON
COLOUR:
BLACK
OPERATING TEMPERATURE RANGE:
-20 +70 * °C
NET WEIGHT:
0.065 Kg
DIMENSIONS:
79,2x90,2x49 mm
CONNECTIONS:
lugs
