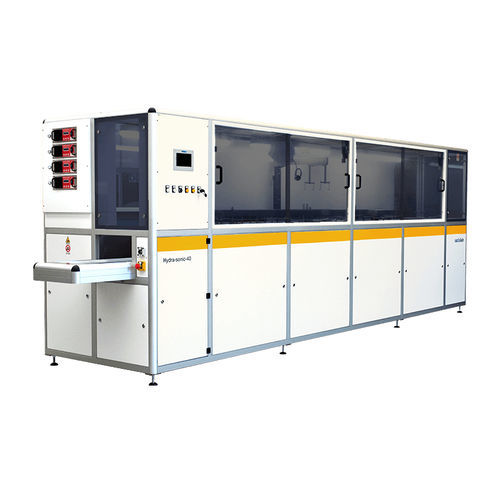

Ultrasonic cleaning tunnel Hydra-sonic-40

automaticprocesscompact

The Hydra-sonic-40 is a fully automated ultrasonic cleaning system for cleaning and drying up to 384 ophthalmic lenses per hour, with a wide productivity range to fit various production needs. Safe and reliable Fully enclosed cabinets and HEPA filter working area to protect against ambient air contamination The fully automated cleaning and drying process with adjustable lift-out system is combined with special heating to provide consistent delivery of AR lenses with repeatable adhesion and color properties Environmentally friendly Low consumption of detergents and water Environmentally friendly drying system with IR heaters Easy to use Compact plug and wash system Optional customizable loading and unloading conveyor belt connection Productivity: - 3072 lenses in a 8 hour shift Dimensions (wxdxh): - 6210 x 1250 x 2325 mm / 244 x 49 x 92 inches (2G version) 7020 x 1250 x 2325 mm / 276 x 49 x 92 inches (3G version) Weight: - 1750 kg / 3858lb 1850 kg / 4078 lb
