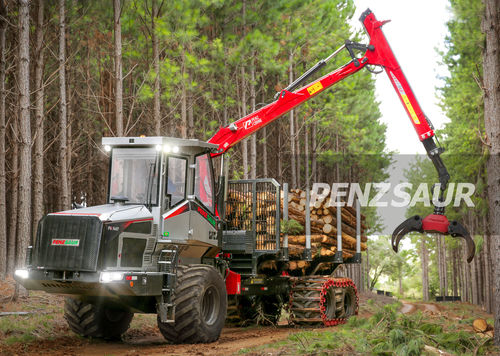

Forestry forwarder FW1467

forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
forestry forwarder
Add to favorites
Compare this product


Characteristics

Operating weight

14 t
(15.4 us ton)

Motor power

179 kW
(243.37 hp)

Description

Description and Application Forwarder FW 1467 PENZSAUR was designed for long journeys in irregular areas with slopes, allowing high performance due to articulation between the cabin and the dolly using hoses. That flexible articulation makes the productivity more efficient, since it reduces the number of maneuvers. Your tippable cab is equipped with items which provide the operator with better ergonomics and comfort. With 6x6 traction, this equipment operates under any weather. The modern control features an electronic controller and its LED-based light system allows night-time work hours. Specifications • - Load capacity: 14 t • - Loading area: 3,8 m² • - Fuel tank capacity: 290 l • - Oil reservoir capacity: 230 l • - Functional length: 4,9 m² • - Free span: 0,73 m • - Angle of attack: 25° • - Exit angle: 42° • - Rotation angle: 41° • - Weight: 16 tons • - Climb Ability: 14° • - Operation cabin: tippable cab with a rotating seat, air conditioning, LEXAN tempered glasses and and LEXAN front and rear glasses against scratches. • - Lighting: 21 LED headlights attached to the cabin and 2 LED highlights attached to the crane • - General triggering: by joystick and electronic controller • - Hydraulics: piston hydraulic pump, hydraulic engine and Sauer Danfos and Bosch Rexroth peripherals • - Breaks: stationary in 6 wheels and hydraulic work break in 6 wheels • - Forward axle: Carraro axis with 2 wheels and forestry tires with 26,5 cm wheel rim • - Rear axle: NAF Bug and wheels with forestry tires with 22,5 cm wheel rim • - Engine: 6-Cylinders Cumins QSB6.7 with 179 KW (240 HP) at 2,500 rpm and maximum torque of 990 Nm at 1,500 rpm • - Speed: 1-10 km/h
