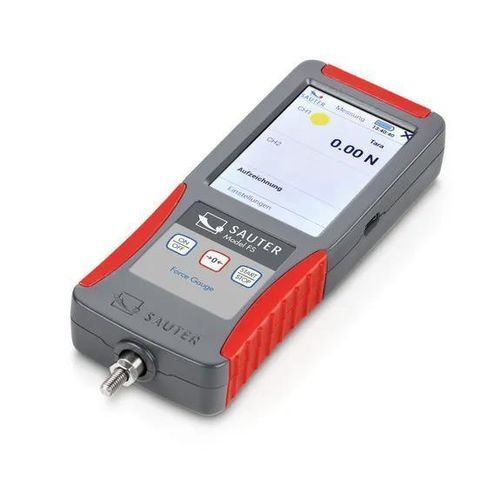

Digital dynamometer FS 2-50

portablewith external sensorwith touchscreen

Overview

The SAUTER digital force gauge is designed for tension and compression measurements with real-time readout on a multifunction 3.5 in touchscreen. It supports mobile and stationary use and provides advanced functions for data acquisition and management.

Main features

• Real-time display on a 3.5 in touchscreen.
• Compatible with SAUTER strain-gauge load cells; up to 4 external cells can be connected simultaneously.
• Two or four measurement channels for external sensors, expandable later.
• Supplied with systainer® T-LOC, power adapter and USB-C cable.
• USB interface for data transfer and 16 GB internal memory.
• Adjustable measurement units (kg, N, kN, etc.) and advanced functions such as peak value measurement.

Variants / available ranges

• 2 kg
• 5 kg
• 10 kg
• 20 kg
• 50 kg

Technical specifications

• Use: tension and compression, mobile or stationary.
• Display: multifunction 3.5 in touchscreen.
• Sensor connections: up to 4 external strain-gauge load cells.
• Measurement channels: 2 or 4 channels (expandable).
• Memory: 16 GB internal.
• Interface: USB (USB-C cable included) for data transfer.
• Included accessories: systainer® T-LOC and power adapter.
• Units: configurable (kg, N, kN, ...).
• Functions: peak value measurement and analysis functions.
• Internal reference DirectIndustry: 0004560727.

Applications

• Quality control and incoming inspection.
• Material testing and component testing.
• R&D and laboratory measurements.
• Maintenance checks and production monitoring.
